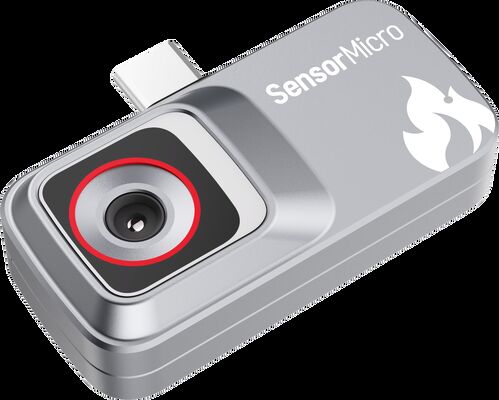

Uncooled LWIR Plug-in Thermal Camera with 120×90/12μm Resolution USB2.0 Interface and 3.3V Operating Voltage

  • Uncooled LWIR Plug-in Thermal Camera with 120×90/12μm Resolution USB2.0 Interface and 3.3V Operating Voltage
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC112
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Spectral Response 8~14μm Type Uncooled Thermal Camera
Infrared Detector 120×90/12μm Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V Output Data 14bit Raw
Highlight

Uncooled LWIR Plug-in Thermal Camera

,

3.3V Plug-in Thermal Camera
Leave a Message
Product Description
Uncooled LWIR Plug-in Thermal Camera with 120×90/12μm Resolution
Product Overview
The iMC112 infrared miniature module is built on the self-developed TIMO112 module, targeting mobile terminal applications. Paired with a dedicated app, it can output images and temperature matrices directly, requiring no temperature calibration, making development effortless.
Key Features
Portable and Cost-Effective
  • Equipped with a self-developed 120×90/12μm wafer-level infrared detector, offering significant cost advantages
  • Ultra-compact design, ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with a dedicated app to output thermal images and temperature matrices directly, shows great universality
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Provides standard and widely compatible USB 2.0 digital video output interface
  • Factory-calibrated temperature data, no need for additional development effort
Technical Specifications
Model iMC112
Resolution 120×90
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 50°/1.6mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 150mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Frequently Asked Questions
What is the difference between low light, active IR and thermal imaging?
Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier.

Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment.

Thermal imaging doesn't need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. Not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.
Can you block thermal imaging?
In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don't want to be detected, you can conceal behind glass or walls to block the thermal imaging.
About SensorMicro
SensorMicro was founded with a simple but powerful belief: Innovation should serve real-world needs.

Backed by Guide Infrared, the world leader in infrared industry, SensorMicro's confidence comes from over three decades of experience Guide has gained. We exist to empower people and systems to see beyond the surface—into the patterns, the problems, and the possibilities that lie beneath.

SensorMicro delivers advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries.

With a wide range of resolutions, interfaces, and form factors, our products enable seamless deployment across sectors including security, energy, environmental monitoring, healthcare, and industrial automation.

By providing both detectors and modules across uncooled and cooled technologies, SensorMicro empowers partners with versatile, scalable infrared solutions—unlocking new possibilities in thermal imaging innovation worldwide.
