Uncooled Thermal Imaging Binoculars With Laser Rangefinder

Place of Origin WUHAN
Brand Name GST
Model Number IR522-WM
Minimum Order Quantity 1 Piece
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Uncooled Thermal Binocular Infrared Camera Detector Cooled MWIR FPA 640x512/15μm
Infrared Camera FOV Max FOV: ≥7.42°×5.35°/Min FOV: ≥2.33°×1.86° Visual Camera Max FOV:≥7.5°x5.34°/Min FOV:≥1.8°x1.3°
High Light

Laser Rangefinder Thermal Imaging Binoculars


Handheld Uncooled Thermal Imaging Binoculars

Leave a Message
Product Description
Brief Introduction

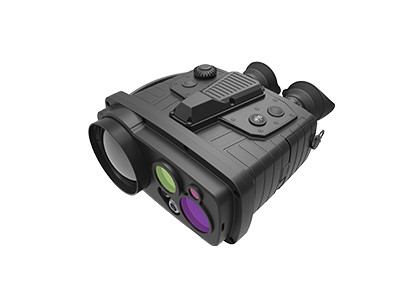

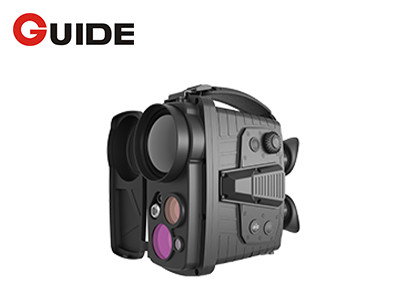

Uncooled Thermal Imaging Binoculars with Laser Rangefinder

Product Description

IR522-WM is a multi-functional handheld uncooled thermal binocular with continuous optical zoom designed for dynamic environments, such as ranging from moving platforms and/or ranging moving targets. It integrated both infrared camera and visual camera for precise, real-time measurement for greater reliability.
Its infrared camera offers clear temperature data with uncooled 640x512 MWIR focal plane array infrared detector and field of view ranging from 2.33°×1.86° to 7.42°×5.35°.
This binocular is able to locate target in daylight and at night and has a high performance laser rangefinder that ensures accurate location of target, even in poor weather conditions.

Main Features

- With high accuracy, repeat frequency, stable laser rangefinder
- Support self and target positioning function that has fast operation, strong signal and high accuracy
- With target recognition and mark functions



Infrared Camera
Detector TypeUncooled VOx FPA Microbolometer
Pixel Pitch12μm
Visual Camera
Field of View≥3°x2.2°
Fog PenetrationYes. When visibility ≤4km, fog penetration ratio ≥1.5
Laser Rangefinder
LRF RangeMin Range≤50m; Max Range: ≥6km
Measuring Error≤2m
Accuracy Rate≥98%
Laser Wavelength1.535μm, Safe band for human eyes
Interface (With external power supply interface)
Data InterfaceStandard USB Port
Video InterfaceStandard PAL
Communication InterfaceStandard RS232
Beidou Positioning Accuracy
Horizontal Positioning≤10m (CEP)
Elevation Positioning≤10m (PE)
Positioning Accuracy
Magnetic Azimuth Accuracy≤0.5° (RMS, Inclination Range -15°~+15°)
Target Positioning Accuracy≤20m (CEP) When the observation distance is 2km
Power Supply
Continuous Working Time≥10h (Room Temperature)
Physical Characteristics
Net Weight≤1.6kg
Gross Weight≤2.3kg
Environmental Adaptability
Working Temperature-40 °C ~+55°C
Storage Temperature-55 °C ~+70°C



1. What is the use of thermal binocular?
Thermal Binoculars are designed for long range detection, observation and extended viewing. A Thermal Binocular is Ideal for detection of game, security and long range surveillance missions.
2. What is the laser rangefinder?
It is an equipment that uses a laser beam to monitor or measure distances or object lengths.
3. Do thermal binoculars work during the night?
The thermal binoculars use the thermal imaging technology to work both day and night and also is effective to get detection range and heat signature information of target in harsh environments.
4. What is better thermal or night vision?
Night vision devices is light sensitive and is not suitable to use directly against strong light. So it is better to use during night. While thermal imaging products can be both used for day and night, which is a best choice for all day monitoring.
