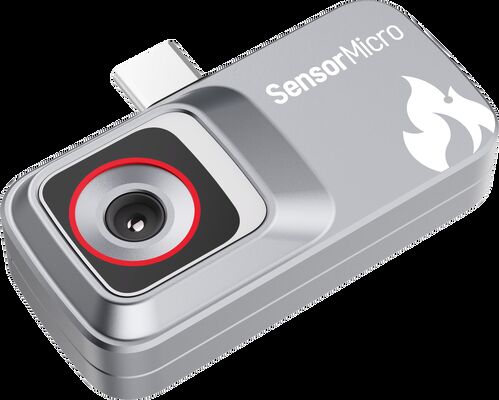

Portable 120×90/12μm Wafer-level Infrared Camera Module for Temperature Screening

  • Portable 120×90/12μm Wafer-level Infrared Camera Module for Temperature Screening
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC112
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Plug-in Thermal Imaging Camera Infrared Camera Detector Uncooled LWIR FPA 120x90/12μm
Spectral Response 8~14μm Frame Rate 25Hz
Operating Voltage 3.3V±0.1V Typical Power Consumption 150mW
Highlight

12μm Wafer-level Infrared Camera Module

,

Portable Wafer-level Infrared Camera Module
Leave a Message
Product Description
Portable 120×90/12μm Wafer-level Infrared Camera Module
The iMC112 infrared miniature module is built on the self-developed TIMO112 module, specifically designed for mobile terminal applications. When paired with a dedicated app, it outputs images and temperature matrices directly without requiring temperature calibration, making development straightforward and efficient.
Product Overview
This ultra-compact module offers a cost-effective, low-power solution for thermal imaging applications. Equipped with universal control interfaces, it simplifies integration and development processes while reducing technical barriers for infrared thermal imaging technology implementation.
The iMC112 infrared miniature module finds applications across multiple industries including AloT, Machine Vision, Industrial Vision, and Security Monitoring.
Main Features
Portable and Cost-Effective
  • Equipped with self-developed 120×90/12μm wafer-level infrared detector for significant cost advantages
  • Ultra-compact design ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with dedicated app to output thermal images and temperature matrices directly
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Standard USB 2.0 digital video output interface for wide compatibility
  • Factory-calibrated temperature data eliminates additional development requirements
Technical Specifications
Model iMC112
Resolution 120×90
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 50°/1.6mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 150mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Frequently Asked Questions
What are the Key Advantages of Plug-in Thermal Cameras?
Portability: Small, lightweight, and compatible with smartphones, tablets, or drones—no need for bulky standalone devices.
Cost-Effectiveness: Fraction of the price of professional thermal cameras, making thermal imaging accessible to various users.
Versatility: Adaptable to multiple use cases via interchangeable attachments.
Ease of Use: Intuitive apps for data visualization and temperature measurement without specialized training.
What is better thermal or night vision?
Night vision devices are light-sensitive and unsuitable for use against strong light, making them primarily suitable for nighttime use. Thermal imaging products can be used both day and night, making them the optimal choice for 24/7 monitoring applications.
About SensorMicro
SensorMicro is a world-leading infrared detector manufacturer and service provider, delivering high-performance uncooled and cooled thermal imaging detectors worldwide. Our professional application experience supports customers in implementing effective thermal imaging solutions.
We provide advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries.
SensorMicro detectors are widely used in thermography, security & surveillance, personal vision, automotive, and consumer infrared products. Our volume production capabilities meet growing demand across all existing and emerging markets.
