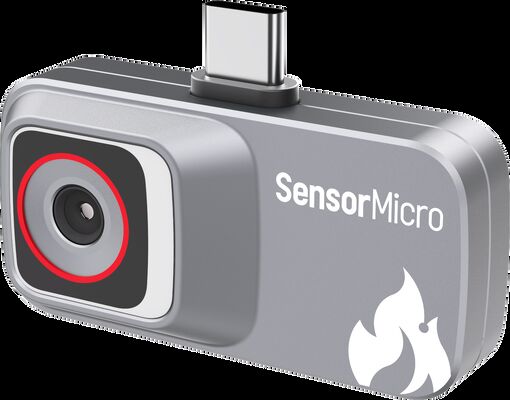

Dongle-sized 120×90 Resolution Thermal Camera with USB2.0 Interface for Mobile Devices

  • Dongle-sized 120×90 Resolution Thermal Camera with USB2.0 Interface for Mobile Devices
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC112
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Storage Temperature -45℃~+85℃ Operating Voltage 3.3V±0.1V
Typical Power Consumption 150mW Type Dongle-sized Thermal Camera
Frame Rate 25Hz Output Data 14bit Raw
Highlight

120×90 Resolution Thermal Camera

,

Thermal Camera with USB2.0 Interface
Leave a Message
Product Description
Dongle-sized 120×90/12μm Thermal Camera with USB2.0 Interface for Mobile Devices
The iMC112 infrared miniature module is built on the self-developed TIMO112 module, targeting mobile terminal applications. Paired with a dedicated app, it outputs images and temperature matrices directly without requiring temperature calibration, making development effortless. This ultra-compact module offers cost-effective performance with low power consumption and universal control interfaces that simplify integration.
Product Applications
The iMC112 infrared miniature module is widely used across multiple industries including AloT, Machine Vision, Industrial Vision, and Security Monitoring.
Main Features
Portable and Cost-Effective
  • Equipped with self-developed 120×90/12μm wafer-level infrared detector for significant cost advantages
  • Ultra-compact design ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with dedicated app to output thermal images and temperature matrices directly
  • Encased in structural components for enhanced reliability and durability
Mainstream Interfaces, Easy Development
  • Standard USB 2.0 digital video output interface with wide compatibility
  • Factory-calibrated temperature data eliminates additional development effort
Technical Specifications
Model iMC112
Resolution 120×90
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 50°/1.6mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 150mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
