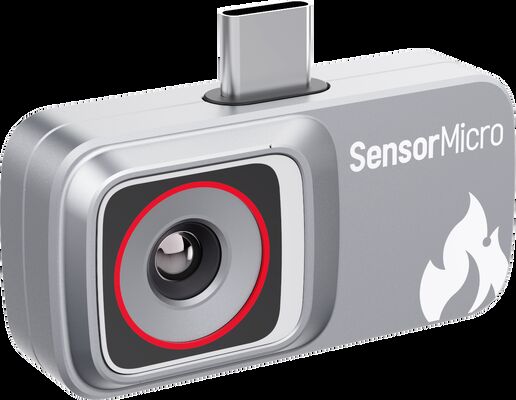

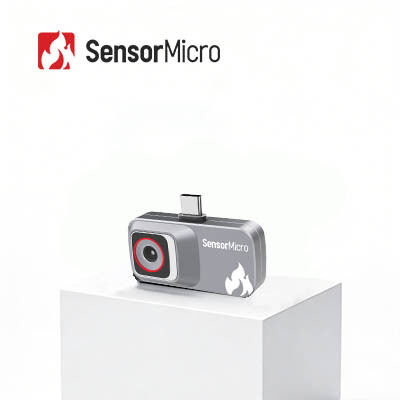

Uncooled LWIR Thermal Camera Module with 256×192 Resolution and 12μm Pixel Size

  • Uncooled LWIR Thermal Camera Module with 256×192 Resolution and 12μm Pixel Size
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Infrared Detector Uncooled LWIR FPA 256×192/12μm Output Data 14bit Raw
Frame Rate 25Hz Temperature Measurement Accuracy Greater Of ±2℃ / ±2%
Digital Video Interface USB2.0 Typical Power Consumption 300mW
Highlight

Uncooled LWIR Thermal Camera Module

,

256×192 LWIR Thermal Camera Module
Leave a Message
Product Description
Uncooled 256*192/12μm High-Quality LWIR Thermal Camera Module
Product Overview

The iMC212 infrared miniature module is engineered for mobile terminal applications, built on our self-developed TIMO212 platform. This integrated solution combines an infrared ISP processing board with structural components to deliver thermal images and temperature matrices directly, eliminating the need for temperature calibration and significantly reducing development complexity.

Key Features
Portable and Cost-Effective
  • Features a self-developed 256*192/12μm wafer-level infrared detector with significant cost advantages
  • Ultra-compact design optimized for mobile and portable device integration
Robust Structure, Reliable Performance
  • Integrated ISP Processing Board with intelligent image algorithms for direct thermal image and temperature matrix output
  • Encased in protective structural components for enhanced reliability and system completeness
Mainstream Interfaces, Easy Development
  • Standard USB 2.0 digital video output interface for broad compatibility
  • Factory-calibrated temperature data eliminates additional development requirements
Technical Specifications
Model iMC212
Resolution 256*192
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 56°/3.2mm
Digital Video Interface USB 2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 300mW
Temperature Measurement Range -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃~60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Manufacturing Advantages
In-House Infrared Detector Technologies
  • 8-inch 0.11μm VOx Uncooled Infrared Detectors
  • 8-inch 0.5μm MCT Cooled Infrared Detectors
  • 8-inch 0.5μm T2SL Cooled Infrared Detectors
Production Capacity & Advantages
  • 6 million self-developed infrared detectors annually
  • 30,000 m² semiconductor fabrication facility
  • 20,000 m² cleanroom area
About SensorMicro

SensorMicro is a world-leading infrared detector manufacturer and service provider, delivering high-performance uncooled and cooled thermal imaging detectors to customers worldwide. Our products integrate advanced infrared detector technologies with professional application expertise.

We provide advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Engineered for exceptional clarity, sensitivity, and efficiency, our products seamlessly integrate into diverse systems—empowering next-generation imaging and sensing applications across multiple industries.

SensorMicro detectors are widely deployed in thermography, security & surveillance, personal vision, automotive systems, and consumer infrared products. Our volume production capabilities ensure we can meet growing demand across all existing and emerging markets.
