Long Range Cooled MWIR Online Monitoring Camera 640x512

Long Range Cooled MWIR Online Monitoring Camera 640x512
Long Range Cooled MWIR Online Monitoring Camera 640x512

Large Image :  Long Range Cooled MWIR Online Monitoring Camera 640x512

Product Details:
Place of Origin: WUHAN
Brand Name: GST
Model Number: S611
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Payment Terms: L/C, T/T
Detailed Product Description
Infrared Detector: Cooled MWIR Focal Plane Array Resolution: 640x512 / 15μm
Visual Camera Resolution: 1920x1080 Weight: ≤70KG
High Light:

Online Monitoring Camera 640x512

,

Cooled MWIR Online Monitoring Camera

,

Cooled MWIR EO IR Systems

Brief Introduction

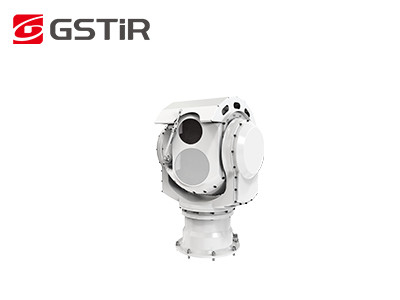

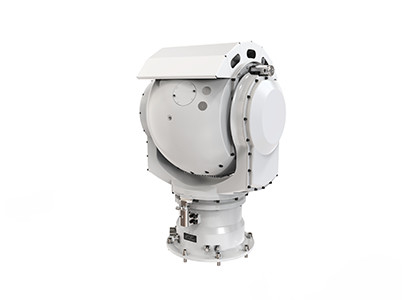

S611 Long Range Online Monitoring Camera



Product Description



The S611 long range online monitoring camera is equipped with both infrared imaging and visible light to instantly verify and visualize target information in the distance.


Under remote control, the visible and infrared video could be transmitted to the terminal equipment with the help of wired and wireless communication network. The device can also assist the data acquisition system to realize a real-time presentation, action decision, analysis and evaluation of the multi-perspective and multi-dimensional situations.



Main Features



- The AV (Audio & Video) integrated management system could be connected to realize a remote control and management of the device

- Provide management platform with senior expand protocol interface
- Under remote maintenance and remote control of imaging system switch



Specifications



Model S611
Infrared Camera
Detector Cooled MWIR Focal Plane Array
Resolution 640×512
Pixel Pitch 15μm
Focal Length Max. ≥500mm, Continuous Zoom
Servo Performance
Rotation Angle 360° Horizontal Continuous; -60°~85° Vertical
Rotation Speed Horizontal≥60°s; Vertical≥ 60°s
Visual Camera
Resolution 1920×1080
Focal Length Max. ≥500mm, Continuous Zoom
Penetrate Fog Yes
Physical Characteristics
Weight ≤70kg
Dimension ≤∅505mmx670mmH



About Global Sensor Technology



Long Range Cooled MWIR Online Monitoring Camera 640x512 0

Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

Global Sensor Technology is located at Optics Valley, China. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room settled for its three 8 inch fabrication lines. Thanks to the innovative and experienced staff, advanced fabrication facilities, and cutting-edge technique level, all key fabrication processes such as element purification, epitaxy growth, chip tape-out and fabrication, vacuum packaging can be done in house. The company successfully launched state-of-the-art VOx uncooled detectors, MCT and T2SL cooled detectors with full intellectual property. The product portfolio covers many different array formats, various pixel size and multiple spectral band combination, all products with high thermal sensitivity and reliability.

GST IR detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of GST enables it to meet the growing demand from all existing and emerging markets.
