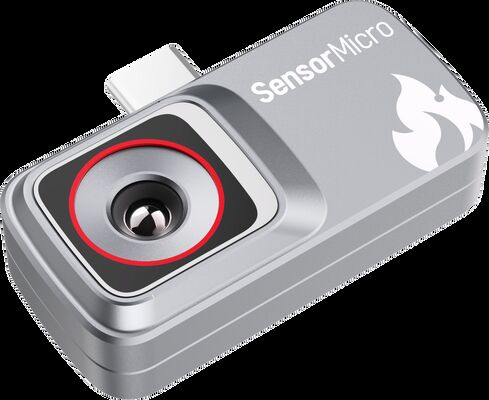

iMC212 Uncooled Infrared Module with 256x192 Resolution and 300mW Power Consumption for Mobile Device Integration
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Infrared Detector | Uncooled LWIR Focal Plane Array | Resolution | 256x192/12μm |
|---|---|---|---|
| Frame Rate | 25Hz | NETD | ≤50mK |
| Output Data | 14bit Raw | Typical Power Consumption | 300mW |
| Highlight | iMC212 Uncooled Infrared Module,256x192 iMC212 Uncooled Infrared Module |
||
Product Description
iMC212 Uncooled Infrared Miniature Module for Mobile Devices
The iMC212 infrared miniature module is built on the self-developed TIMO212 module, specifically designed for mobile terminal applications. Integrated with an infrared ISP processing board and structural components, it supports direct output of thermal images and temperature matrices without requiring temperature calibration, significantly reducing development effort. This ultra-compact module offers cost-effective performance with low power consumption. Equipped with universal control interfaces, it simplifies integration and development processes while lowering the technical barrier for implementing infrared thermal imaging technology.
Main Features
Portable and Cost-Effective
- Equipped with a self-developed 256×192/12μm wafer-level infrared detector, offering significant cost advantages
- Ultra-compact design, ideal for mobile and portable devices
Robust Structure, Reliable Performance
- Paired with ISP Processing Board and Intelligent Image Algorithm to output thermal images and temperature matrices directly
- Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
- Provides standard and widely compatible USB 2.0 digital video output interface
- Factory-calibrated temperature data, eliminating additional development effort
Technical Specifications
| Model | iMC212 |
|---|---|
| Resolution | 256×192 |
| Pixel Size | 12μm |
| Spectral Response | 8~14μm |
| NETD | ≤50mK |
| Output Data | 14bit Raw |
| Frame Rate | 25Hz |
| Focus Mode | Focus Free |
| Lens (HFOV/FL) | 56°/3.2mm |
| Digital Video Interface | USB2.0 |
| Operating Voltage | 3.3V±0.1V |
| Typical Power Consumption | 300mW |
| Temperature Measurement Range | -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃) |
| Temperature Measurement Accuracy | Greater of ±2℃ / ±2% |
| Operating Temperature | -20℃~+60℃ |
| Humidity | 5%~85% |
| Storage Temperature | -45℃~+85℃ |
| Certification | CE, FCC, RoHS |
About SensorMicro
SensorMicro is a world-leading infrared detector manufacturer and service provider, committed to delivering high-performance uncooled and cooled thermal imaging detectors to customers worldwide while sharing professional application expertise. We provide advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries. SensorMicro detectors have been widely used in thermography, security & surveillance, personal vision, automotive, and consumer infrared products. Our volume production capability enables us to meet the growing demand from all existing and emerging markets.
Frequently Asked Questions
What application scenarios can plug-in thermal cameras be used in?
Smartphone-connected: Home maintenance (detecting water leaks, electrical hotspots, or wall insulation gaps); outdoor activities (night navigation, wildlife tracking); non-contact temperature checks.
Laptop/tablet-connected: Nighttime monitoring (identifying human/vehicle targets without visible light); perimeter security for homes or small businesses.
Portable temperature screening: Fever detection in public spaces; veterinary care (checking animal body temperature).
Connected to in-car infotainment systems: Enhancing nighttime driving visibility (detecting pedestrians or obstacles beyond headlight range) as a supplementary tool for ADAS (Advanced Driver Assistance Systems).
Laptop/tablet-connected: Nighttime monitoring (identifying human/vehicle targets without visible light); perimeter security for homes or small businesses.
Portable temperature screening: Fever detection in public spaces; veterinary care (checking animal body temperature).
Connected to in-car infotainment systems: Enhancing nighttime driving visibility (detecting pedestrians or obstacles beyond headlight range) as a supplementary tool for ADAS (Advanced Driver Assistance Systems).
