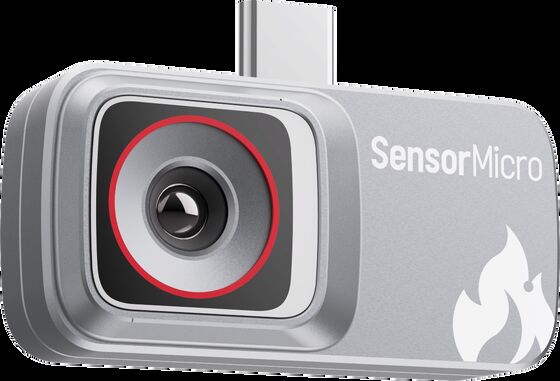

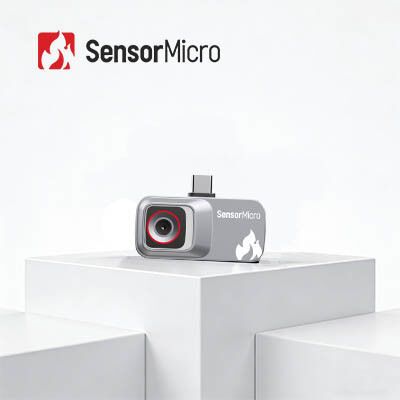

Portable 256×192 Resolution 12μm Pixel Size Ultra-compact Thermal Imaging Module for Plug-in Thermal Camera

  • Portable 256×192 Resolution 12μm Pixel Size Ultra-compact Thermal Imaging Module for Plug-in Thermal Camera
Place of Origin WUHAN
Brand Name 256×192/12μm
Certification CE, FCC, RoHS
Model Number iMC212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Data 14bit Raw NETD ≤50mK
Pixel Size 12μm Lens(HFOV/FL) 56°/ 3.2mm
Temperature Measurement Accuracy Greater Of ±2℃ / ±2% Operating Temperature -20℃～-60℃
Highlight

Portable Thermal Imaging Module

,

Ultra-compact Thermal Imaging Module
Leave a Message
Product Description
Portable Uncooled LWIR 256*192/12μm Thermal Imaging Module with Ultra-compact Design
The iMC212 infrared miniature module is built on the self-developed TIMO212 module, targeting mobile terminal applications. Integrated with an infrared ISP processing board and structural components, it supports direct output of thermal images and temperature matrices without the need for temperature calibration, significantly reducing development effort. The iMC ultra-compact module is a cost-effective and low-power solution. Equipped with universal control interfaces, it simplifies integration and development processes, reducing the technical barrier for implementing infrared thermal imaging technology.
Main Features
Portable and Cost-Effective
  • Equipped with a self-developed 256*192/12μm wafer-level infrared detector, offering significant cost advantages
  • Ultra-compact design, ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with an ISP Processing Board and Intelligent Image Algorithm to output thermal images and temperature matrices directly
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Provides standard and widely compatible USB 2.0 digital video output interface
  • Factory-calibrated temperature data, eliminating additional development requirements
Technical Specifications
Model iMC212
Resolution 256*192
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 56°/3.2mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 300mW
Temperature Measurement Range -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃~60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Production Capability
In-House Infrared Detector Technologies
  • 8-inch 0.11μm VOx Uncooled Infrared Detectors
  • 8-inch 0.5μm MCT Cooled Infrared Detectors
  • 8-inch 0.5μm T2SL Cooled Infrared Detectors
Production Capacity & Advantages
  • 6 million self-developed infrared detectors per year
  • 30,000 m² semiconductor fabrication facility
  • 20,000 m² cleanroom area
Frequently Asked Questions
What application scenarios can plug-in thermal cameras be used in?
Smartphone-connected: Home maintenance (detecting water leaks, electrical hotspots, or wall insulation gaps); outdoor activities (night navigation, wildlife tracking); non-contact temperature checks.
Laptop/tablet-connected: Nighttime monitoring (identifying human/vehicle targets without visible light); perimeter security for homes or small businesses.
Portable temperature screening: Fever detection in public spaces; veterinary care (checking animal body temperature).
Connected to in-car infotainment systems: Enhancing nighttime driving visibility (detecting pedestrians or obstacles beyond headlight range) as a supplementary tool for ADAS (Advanced Driver Assistance Systems).
