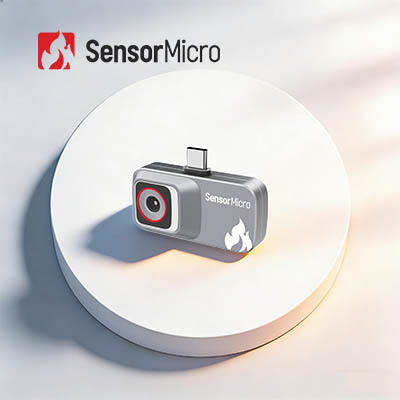

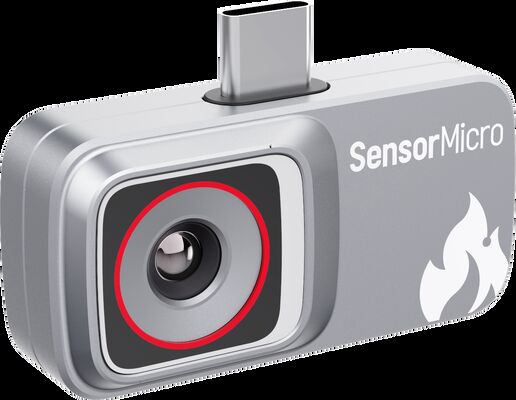

Smartphone-compatible 25Hz 256×192/12μm Infrared Thermal Imaging Module Plug-in Thermal Camera

  • Smartphone-compatible 25Hz 256×192/12μm Infrared Thermal Imaging Module Plug-in Thermal Camera
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Infrared Detector Resolution 256×192/12μm Lens (HFOV/FL) 56°/ 3.2mm
Output Data 14bit Raw Typical Power Consumption 300mW
Spectral Response 8~14μm Operating Temperature -20℃～-60℃
Highlight

12μm Infrared Plug-in Thermal Camera

,

Smartphone Compatible Plug-in Thermal Camera
Leave a Message
Product Description
Thermal Camera for Smartphones - 25Hz 256*192/12μm Infrared Module
The iMC212 infrared miniature module is engineered for mobile terminal applications, built on the advanced TIMO212 platform. This integrated solution combines an infrared ISP processing board with structural components to deliver thermal images and temperature matrices without requiring temperature calibration, significantly reducing development complexity.
Key Features
Portable and Cost-Effective
  • Features a self-developed 256*192/12μm wafer-level infrared detector with significant cost advantages
  • Ultra-compact design optimized for mobile and portable device integration
Robust Structure, Reliable Performance
  • Integrated ISP Processing Board with intelligent image algorithms for direct thermal image and temperature matrix output
  • Encased in protective structural components for enhanced reliability and durability
Mainstream Interfaces, Easy Development
  • Standard USB 2.0 digital video output interface for broad compatibility
  • Factory-calibrated temperature data eliminates additional development requirements
Technical Specifications
Model iMC212
Resolution 256*192
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 56°/ 3.2mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 300mW
Temperature Measurement Range -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
About SensorMicro
SensorMicro is a global leader in infrared detector manufacturing and services. We provide high-performance uncooled and cooled thermal imaging detectors to customers worldwide, sharing our extensive professional application expertise.
Our product portfolio includes advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Engineered for exceptional clarity, sensitivity, and efficiency, SensorMicro products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across multiple industries.
SensorMicro detectors are widely deployed in thermography, security & surveillance, personal vision, automotive systems, and consumer infrared products. Our volume production capabilities ensure we can meet growing demand across all existing and emerging markets.
Frequently Asked Questions
What application scenarios can plug-in thermal cameras be used in?
Smartphone-connected: Home maintenance (detecting water leaks, electrical hotspots, or wall insulation gaps); outdoor activities (night navigation, wildlife tracking); non-contact temperature checks.

Laptop/tablet-connected: Nighttime monitoring (identifying human/vehicle targets without visible light); perimeter security for homes or small businesses.

Portable temperature screening: Fever detection in public spaces; veterinary care (checking animal body temperature).

Connected to in-car infotainment systems: Enhancing nighttime driving visibility (detecting pedestrians or obstacles beyond headlight range) as a supplementary tool for ADAS (Advanced Driver Assistance Systems).
