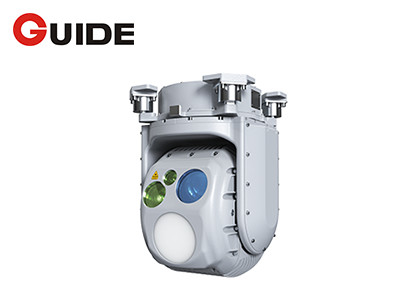

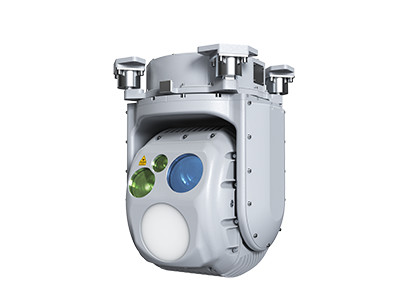

2 Axis Multi Sensors EO IR Tracking System For UAVs

2 Axis Multi Sensors EO IR Tracking System For UAVs
2 Axis Multi Sensors EO IR Tracking System For UAVs

Large Image :  2 Axis Multi Sensors EO IR Tracking System For UAVs

Product Details:
Place of Origin: WUHAN
Brand Name: GST
Model Number: GDES-300F20
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Payment Terms: L/C, T/T
Detailed Product Description
Infrared Camera Resolution: 640x512 Visual Camera Resolution: 1920x1080
Laser Wavelength: 1.064μm Power Consumption: ≤200W (Average)
High Light:

EO IR Systems For UAVs

,

Multi Sensors EO IR Tracking System

,

2 Axis EO IR Tracking System

Brief Introduction



GDES-300F20 Airborne 2-Axis Multi Sensors Observation Pod



Product Description



The GDES-300F20 airborne 2-axis multi sensors observation pod adopts a spherical stable platform with a diameter of 280mm. It is equipped with a 1080P low-illuminance visual camera, a cooled infrared camera and a laser rangefinder.


The pod weighs less than 20KG and is suitable for small and medium-sized UAVs to search and observe targets. It has the functions of target positioning and geographic guidance based on the aircraft information.



Main Features



- High stability accuracy up to 0.03 mrad
- Core infrared detector with self-developed intellectual property right
- Support real-time output of thermal image and visible image
- With inertial image stabilization, locking, scanning functions
- With airborne information for target positioning



Specifications



Model GDES-300F20
Infrared Camera
Detector Type Cooled MWIR Focal Plane Array
Resolution 640×512
Pixel Pitch 15μm
Horizontal FOV 1.83°×1.5°~35.5°×28.7°
Zoom Lens 15~300mm, Continuous Zoom
Visual Camera
Resolution 1920×1080
Focal Length 10~300mm Continuous Zoom
FOV 1.1°×0.6° ~ 32.1°×18.4°
Laser
Wavelength 1.064μm (Safe for Human Eyes)
Maximum Range ≥12KM
Irradiation Distance ≥6KM
LRF Accuracy ±5m
Servo System
Moving Range 360° Continuous Azimuth, -120 ~+10° Elevation
Stabilization Accuracy ≤ 0.03mrad (RMS)
Angle Measurement Accuracy ≤ 1mrad
Maximum Angular Velocity ≥60°/s
Electrical Interface
Working Voltage DC28V (18~36V Input Accepted)
Power Consumption ≤200W (Average)
Video Interface Ethernet Interface
Physical Characteristics
Weight ≤20kg
Size ≤300mm×380mm (OD×H)



About Global Sensor Technology



2 Axis Multi Sensors EO IR Tracking System For UAVs 0

Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

Global Sensor Technology is located at Optics Valley, China. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room settled for its three 8 inch fabrication lines. Thanks to the innovative and experienced staff, advanced fabrication facilities, and cutting-edge technique level, all key fabrication processes such as element purification, epitaxy growth, chip tape-out and fabrication, vacuum packaging can be done in house. The company successfully launched state-of-the-art VOx uncooled detectors, MCT and T2SL cooled detectors with full intellectual property. The product portfolio covers many different array formats, various pixel size and multiple spectral band combination, all products with high thermal sensitivity and reliability.

GST IR detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of GST enables it to meet the growing demand from all existing and emerging markets.
