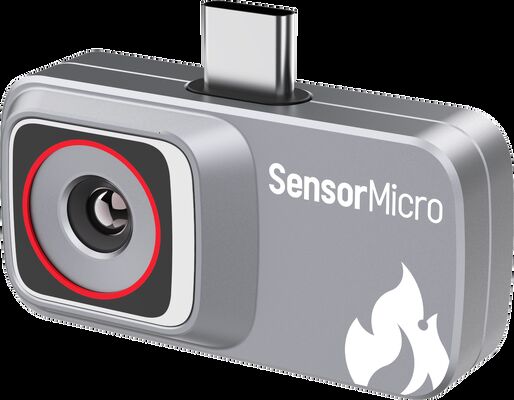

Smartphone-connected Uncooled 256×192/12μm Thermal Camera for Electrical Hotspots and Mobile Applications

  • Smartphone-connected Uncooled 256×192/12μm Thermal Camera for Electrical Hotspots and Mobile Applications
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Infrared Detector Resolution 256×192/12μm Output Data 14bit Raw
Temperature Measurement Accuracy Greater Of ±2℃ / ±2% Lens (HFOV/FL) 56°/ 3.2mm
Spectral Response 8~14μm Focus Mode Focus Free
Highlight

Thermal Camera for Electrical Hotspots

,

Smartphone-connected Uncooled Thermal Camera
Leave a Message
Product Description
Smartphone-connected Uncooled 256*192/12μm Thermal Camera for Electrical Hotspots
The iMC212 infrared miniature module is built on the self-developed TIMO212 module, targeting mobile terminal applications. Integrated with an infrared ISP processing board and structural components, it supports direct output of thermal images and temperature matrices without the need for temperature calibration, significantly reducing development effort. This ultra-compact module offers cost-effective and low-power thermal imaging solutions with universal control interfaces that simplify integration and development processes.
Main Features
Portable and Cost-Effective
  • Equipped with a self-developed 256*192/12μm wafer-level infrared detector, offering significant cost advantages
  • Ultra-compact design, ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with ISP Processing Board and Intelligent Image Algorithm to output thermal images and temperature matrices directly
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Provides standard and widely compatible USB 2.0 digital video output interface
  • Factory-calibrated temperature data, eliminating additional development effort
Technical Specifications
Model iMC212
Resolution 256*192
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 56°/ 3.2mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 300mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
About SensorMicro
SensorMicro is a world-leading infrared detector manufacturer and service provider, delivering high-performance uncooled and cooled thermal imaging detectors to customers worldwide. Our advanced infrared detectors, camera cores, and modules feature versatile formats and wavebands designed for clarity, sensitivity, and efficiency. SensorMicro products integrate seamlessly into diverse systems, empowering next-generation imaging and sensing applications across industries including thermography, security & surveillance, personal vision, automotive, and consumer infrared products.
Frequently Asked Questions
What application scenarios can plug-in thermal cameras be used in?
Smartphone-connected: Home maintenance (detecting water leaks, electrical hotspots, or wall insulation gaps); outdoor activities (night navigation, wildlife tracking); non-contact temperature checks.

Laptop/tablet-connected: Nighttime monitoring (identifying human/vehicle targets without visible light); perimeter security for homes or small businesses.

Portable temperature screening: Fever detection in public spaces; veterinary care (checking animal body temperature).

Connected to in-car infotainment systems: Enhancing nighttime driving visibility (detecting pedestrians or obstacles beyond headlight range) as a supplementary tool for ADAS (Advanced Driver Assistance Systems).
