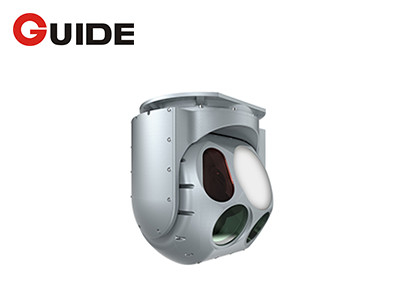

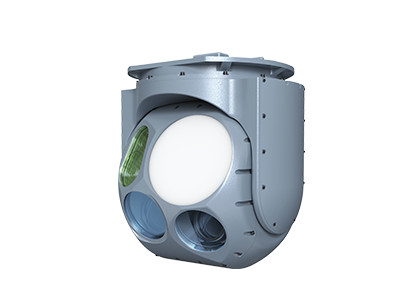

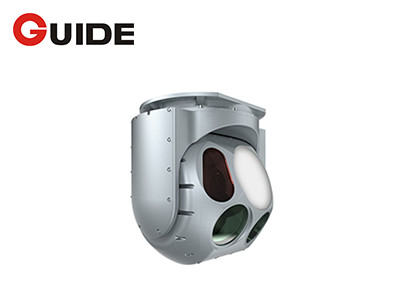

Airborne 4 Axis Multi Band Reconnaissance Pod With Spherical Platform

Airborne 4 Axis Multi Band Reconnaissance Pod With Spherical Platform
Airborne 4 Axis Multi Band Reconnaissance Pod With Spherical Platform

Large Image :  Airborne 4 Axis Multi Band Reconnaissance Pod With Spherical Platform

Product Details:
Place of Origin: WUHAN
Brand Name: GST
Model Number: GDES-450H55
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Payment Terms: L/C, T/T
Detailed Product Description
Infrared Camera Resolution: 1920x1080 Laser Wavelength: 1.064μm
Weight: ≤55KG
High Light:

4 Axis Multi Band Reconnaissance Pod

,

Airborne Reconnaissance Pod

,

Spherical Platform EO IR Systems

Brief Introduction



GDES-450H55 Airborne 4-axis Multi-band Reconnaissance Pod



Product Description



The GDES-450H55 airborne 4-axis multi-band reconnaissance pod adopts a stable spherical platform with a diameter of φ450mm and weighs less than 55kg.


Based on an extensive experience in advanced electro optics and infrared systems (EO/IR), the GDES-450H55 pod is equipped with 1080P visible light camera, large array 1280 cooled thermal camera, laser rangefinder and other optical devices (laser indication, laser illumination etc.).
Automatic and suspected target warning, target location, multi-target memory functions can be used to provide target information for the aircraft fire control system.



Main Features



- High stability accuracy up to 0.03mrad
- Core infrared detector with self-developed intellectual property right
- Support real-time output of thermal image and visible image
- With inertial image stabilization, locking, scanning functions
- With airborne information for target positioning function



Specifications



Model GDES-450H55
Infrared Camera
Detector Cooled MWIR Focal Plane Array
Resolution 1280×1024
Pixel Pitch 12μm
FOV 0.92°×0.73°~35.49×28.72°
Zoom Lens 15~600mm, Continuous Zoom
Visual Camera
Resolution 1920×1080
Focal Length 10~600mm, Continuous Zoom
FOV 1.01°×0.57°~38.78°×22.4°
Laser
Wavelength 1.064μm
Maximum Range ≥20km
Irradiation Distance ≥12km
LRF Accuracy ±5m
Illumination Distance ≥500m
Servo System
Motion Range 360° Continuous Azimuth, -110~+20° Elevation
Stabilization Accuracy ≤0.02mrad(RMS)
Electrical Interface
Working Voltage DC28V (Support 18-36V Input)
Video Port Ethernet
Physical Characteristics
Weight ≤55kg
Dimension ≤450mmx580mm (OD×H)



About Global Sensor Technology



Airborne 4 Axis Multi Band Reconnaissance Pod With Spherical Platform 0



Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

Global Sensor Technology is located at Optics Valley, China. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room settled for its three 8 inch fabrication lines. Thanks to the innovative and experienced staff, advanced fabrication facilities, and cutting-edge technique level, all key fabrication processes such as element purification, epitaxy growth, chip tape-out and fabrication, vacuum packaging can be done in house. The company successfully launched state-of-the-art VOx uncooled detectors, MCT and T2SL cooled detectors with full intellectual property. The product portfolio covers many different array formats, various pixel size and multiple spectral band combination, all products with high thermal sensitivity and reliability.

GST IR detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of GST enables it to meet the growing demand from all existing and emerging markets.
