Handheld Infrared Low Light Fusion Binocular 800x600

I'm Online Chat Now

Handheld Infrared Low Light Fusion Binocular 800x600

Handheld Infrared Low Light Fusion Binocular 800x600
Handheld Infrared Low Light Fusion Binocular 800x600

Large Image :  Handheld Infrared Low Light Fusion Binocular 800x600

Product Details:
Place of Origin: WUHAN
Brand Name: GST
Model Number: IR528-WM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Payment Terms: L/C, T/T
Detailed Product Description
Type: Uncooled Thermal Binocular
High Light:

Handheld Fusion Binocular

,

Fusion Binocular 800x600

,

Handheld Infrared Vision Binoculars

Brief Introduction

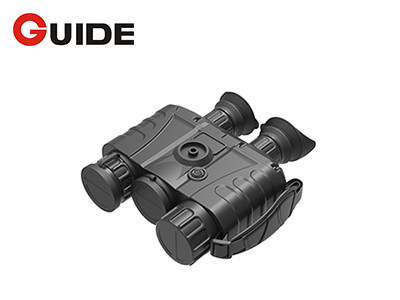

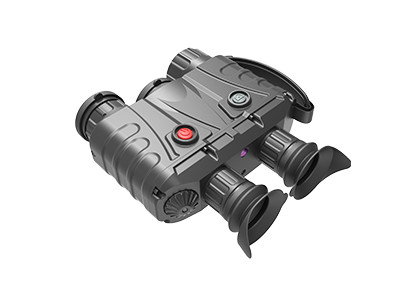

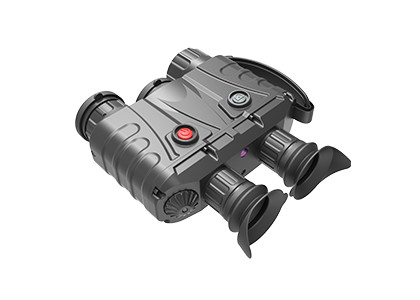

IR528-WM Infrared & Low Light Fusion Binocular



Product Description



The IR528-WM is a kind of hand-held infrared & low light fusion binocular which is mainly used for observing scenes day and night, with a certain ability to recognize camouflage. The binocular has low light, thermal imaging, fusion of black and white, fusion of colors modes.



Main Features



- Support 4 modes: low light, thermal imaging, fusion of black & white and fusion of colors
- Various control functions: image / video storage, playback and deletion
- Support undervoltage indication, battery reverse connection protection
- Support power control (on/off), switching mode, contrast adjustment, brightness adjustment, focusing
- Support video output, serial communication interface, local OLED display and connection to external display



Specifications



Model IR528-WM
Infrared Camera
Detector Type Uncooled VOx FPA Microbolometer
Resolution 800×600
Pixel Pitch 17μm
FOV 16°×12°
Power Supply
Built-in Battery 18650 (4 pcs)
Power Consumption ≤ 5.5W
Continuous Working Time ≥6h (Room Temperature)
Storage
Built-in Storage Support storage of no less than 10,000 original static images and no less than 2h videos
Physical Characteristics
Weight ≤1.2kg (With Battery)
Environmental Adaptability
Working Temperature -40 °C ~+55°C
Storage Temperature -55 °C ~+70°C
Accessories
Standard Battery
Charger
Safety Box
External Cable
Power Adapter
Optional Tripod
Portable Bag



About Global Sensor Technology



Handheld Infrared Low Light Fusion Binocular 800x600 0

Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

Global Sensor Technology is located at Optics Valley, China. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room settled for its three 8 inch fabrication lines. Thanks to the innovative and experienced staff, advanced fabrication facilities, and cutting-edge technique level, all key fabrication processes such as element purification, epitaxy growth, chip tape-out and fabrication, vacuum packaging can be done in house. The company successfully launched state-of-the-art VOx uncooled detectors, MCT and T2SL cooled detectors with full intellectual property. The product portfolio covers many different array formats, various pixel size and multiple spectral band combination, all products with high thermal sensitivity and reliability.

GST IR detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of GST enables it to meet the growing demand from all existing and emerging markets.
