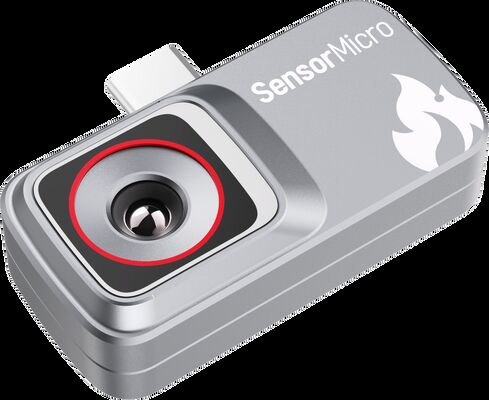

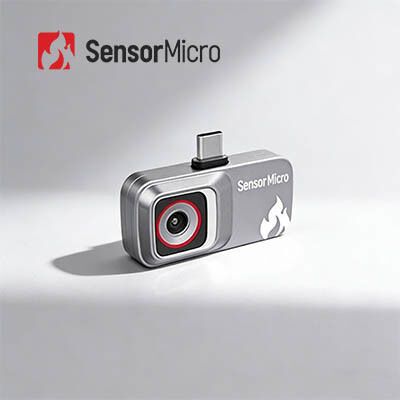

256×192 Resolution 12μm Pixel Size Plug-in Thermal Camera Module with 300mW Power Consumption

  • 256×192 Resolution 12μm Pixel Size Plug-in Thermal Camera Module with 300mW Power Consumption
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Typical Power Consumption 300mW Operating Voltage 3.3V±0.1V
Lens (HFOV/FL) 56°/ 3.2mm Focus Mode Focus Free
Spectral Response 8~14μm Pixel Size 12μm
Highlight

Plug-in Thermal Camera Module

,

12μm Plug-in Thermal Camera Module
Leave a Message
Product Description
LWIR Thermal Imaging Camera Module Integrates 256×192/12μm Microbolometer
The iMC212 infrared miniature module is built on the self-developed TIMO212 module, targeting mobile terminal applications. Integrated with an infrared ISP processing board and structural components, it supports direct output of thermal images and temperature matrices without the need for temperature calibration, significantly reducing development effort. The iMC ultra-compact module is a cost-effective and low-power solution equipped with universal control interfaces, simplifying integration and development while reducing technical barriers to infrared thermal imaging technology.
Main Features
Portable and Cost-Effective
  • Equipped with a self-developed 256×192/12μm wafer-level infrared detector, offering significant cost advantages
  • Ultra-compact design, ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with ISP Processing Board and Intelligent Image Algorithm to output thermal images and temperature matrices directly
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Provides standard and widely compatible USB 2.0 digital video output interface
  • Factory-calibrated temperature data, eliminating additional development effort
Specifications
Model iMC212
Resolution 256×192
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 56°/ 3.2mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 300mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
About SensorMicro
SensorMicro is the world leading infrared detector manufacturer and service provider. We provide customers worldwide with high performance uncooled and cooled thermal imaging detectors and share our professional application experience.
SensorMicro delivers advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries.
SensorMicro detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. Our volume production capability enables us to meet the growing demand from all existing and emerging markets.
Frequently Asked Questions
What is a Plug-in Thermal Camera?
A plug-in thermal camera (also called an "external thermal imaging module" or "thermal camera dongle") is a compact, portable thermal imaging device designed to connect to external devices (such as smartphones, tablets, laptops, drones, or industrial controllers) via standard interfaces (e.g., USB-C, Lightning, HDMI, or MIPI). Unlike standalone thermal cameras (which have built-in displays, batteries, and processing units), plug-in models rely on the host device for power, data processing, and image output—turning ordinary devices into thermal imaging tools at a lower cost and smaller form factor.
