640x512 Portable Uncooled Thermal Imaging Binoculars

I'm Online Chat Now

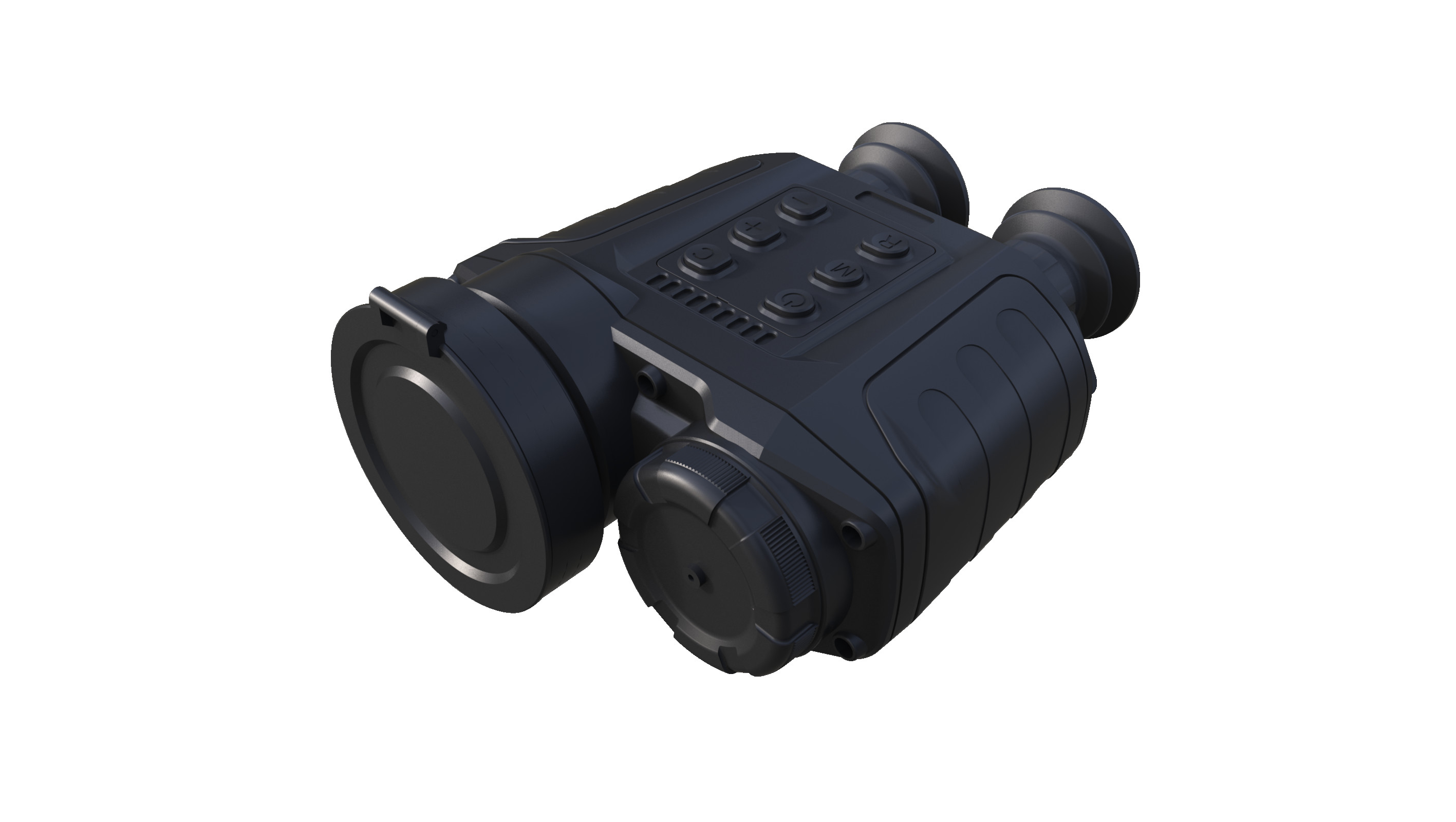

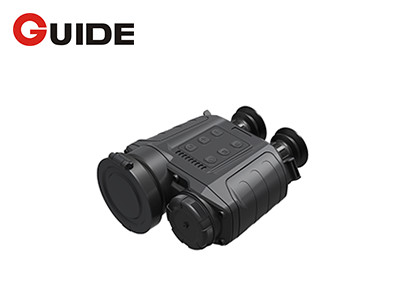

640x512 Portable Uncooled Thermal Imaging Binoculars

640x512 Portable Uncooled Thermal Imaging Binoculars
640x512 Portable Uncooled Thermal Imaging Binoculars

Large Image :  640x512 Portable Uncooled Thermal Imaging Binoculars

Product Details:
Place of Origin: WUHAN
Brand Name: GST
Model Number: IR516C
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Payment Terms: L/C, T/T
Detailed Product Description
Type: Uncooled Thermal Binocular
High Light:

Portable Uncooled Thermal Imaging Binoculars

,

640x512 Thermal Imaging Binoculars

,

Uncooled Heat Sensor Binoculars

Brief Introduction



Uncooled Thermal Binocular



Product Description



The IR516C portable uncoooled thermal binocular can detect hidden targets in very poor light conditions or total darkness, especially in harsh weather with wind, fog, rain and snow.


The IR516C supports image capture, video record as well as replay functions. It meets various observation requirements of detection, identification and recognition of heat target and is of great use particularly in complicated surroundings.



Main Features



- Realize detection, identification and recognition of targets with thermal imaging technology
- Built-in photo, video recorder and replay functions
- Output photo and video via USB interface
- Support infrared electric focusing, pseudo color, 2х/4x magnification and cursor control
- Support adjustment of infrared contrast, brightness, auto compensation and display control of heat trace



Specifications



Model IR516C
Infrared Camera
Detector Uncooled VOx FPA Microbolometer
Resolution 640x512
Pixel Pitch 12μm
Spectral Range 8-14μm
Infrared Optics
Focal Length 61mm
FOV 7.32°X5.86°
F# 0.8
Storage
Memory 32G
Pic Format JPG
Video Format AVI
Display
Color OLED High Resolution OLED
Ocular Monocular
Power Supply
Input Voltage DC12V±0.5V
Battery 18650/2 pcs
Continuous Working Time >4hs (Room Temp.)
Physical Characteristics
Weight ≤1.5kg
Dimension ≤215x170x100mm
Mount Type 1/4" Socket
Environmental Adaptability
Working Temperature -40 ℃-+55℃
Storage Temperature -40℃-+60℃
Accessories
Standard Battery
Charger
Portable Bag
Safety Box
External Cable
External Display Terminal
Power Adaptor
Tripod
Portable Bag



About Global Sensor Technology



640x512 Portable Uncooled Thermal Imaging Binoculars 0

Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

Global Sensor Technology is located at Optics Valley, China. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room settled for its three 8 inch fabrication lines. Thanks to the innovative and experienced staff, advanced fabrication facilities, and cutting-edge technique level, all key fabrication processes such as element purification, epitaxy growth, chip tape-out and fabrication, vacuum packaging can be done in house. The company successfully launched state-of-the-art VOx uncooled detectors, MCT and T2SL cooled detectors with full intellectual property. The product portfolio covers many different array formats, various pixel size and multiple spectral band combination, all products with high thermal sensitivity and reliability.

GST IR detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of GST enables it to meet the growing demand from all existing and emerging markets.
