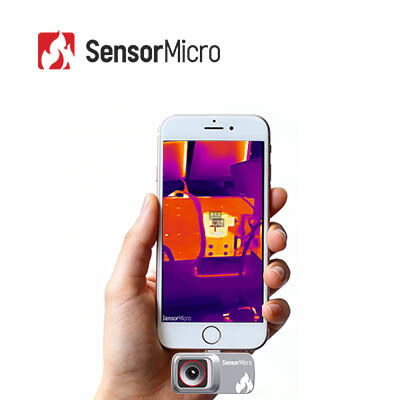

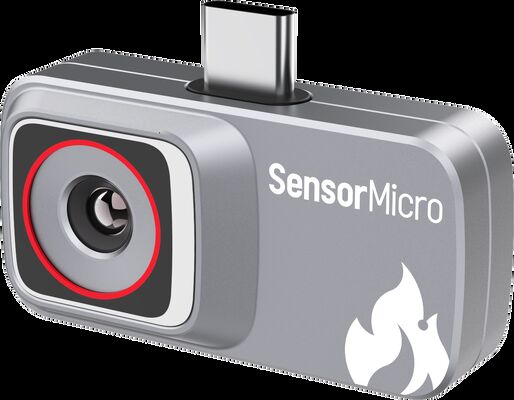

Ultra-Compact 256×192 Resolution 12μM Pixel Size Plug-In Thermal Camera Infrared Camera Module

  • Ultra-Compact 256×192 Resolution 12μM Pixel Size Plug-In Thermal Camera Infrared Camera Module
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
NETD ≤50mK Spectral Response 8~14μm
Operating Voltage 3.3V±0.1V Lens (HFOV/FL) 56°/ 3.2mm
Frame Rate 25Hz Resolution 256×192
Highlight

Infrared Plug-In Thermal Camera

,

Compact 256×192 Plug-In Thermal Camera
Leave a Message
Product Description
Compact, Portable Thermal Imaging Device 256*192/12μm Infrared Camera Module
The iMC212 infrared miniature module is built on the self-developed TIMO212 module, targeting mobile terminal applications. Integrated with an infrared ISP processing board and structural components, it supports direct output of thermal images and temperature matrices without the need for temperature calibration, significantly reducing development effort. This ultra-compact module offers cost-effective performance with low power consumption, featuring universal control interfaces that simplify integration and development processes.
Main Features
Portable and Cost-Effective
  • Equipped with self-developed 256*192/12μm wafer-level infrared detector with significant cost advantages
  • Ultra-compact design ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with ISP Processing Board and intelligent image algorithm for direct thermal image and temperature matrix output
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Standard USB 2.0 digital video output interface with wide compatibility
  • Factory-calibrated temperature data eliminates additional development effort
Technical Specifications
Model iMC212
Resolution 256*192
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 56°/ 3.2mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 300mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
About SensorMicro
SensorMicro is a world-leading infrared detector manufacturer and service provider, delivering high-performance uncooled and cooled thermal imaging detectors to customers worldwide. We share professional application experience and provide advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Our products are designed for clarity, sensitivity, and efficiency, integrating seamlessly into diverse systems to empower next-generation imaging and sensing applications across industries.
SensorMicro detectors are widely used in thermography, security & surveillance, personal vision, automotive, and consumer infrared products. Our volume production capability enables us to meet growing demand from all existing and emerging markets.
Frequently Asked Questions
What is a Plug-in Thermal Camera?
A plug-in thermal camera (also called an "external thermal imaging module" or "thermal camera dongle") is a compact, portable thermal imaging device designed to connect to external devices such as smartphones, tablets, laptops, drones, or industrial controllers via standard interfaces (USB-C, Lightning, HDMI, or MIPI). Unlike standalone thermal cameras with built-in displays, batteries, and processing units, plug-in models rely on the host device for power, data processing, and image output—turning ordinary devices into thermal imaging tools at lower cost and smaller form factor.
