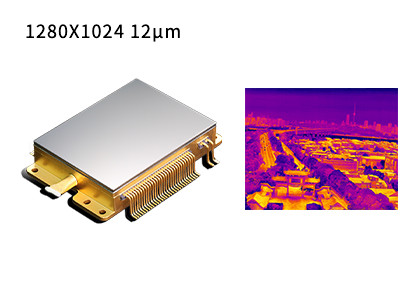

1280x1024 / 12μm Uncooled FPA Detector for Thermal Surveillance Camera

I'm Online Chat Now

1280x1024 / 12μm Uncooled FPA Detector for Thermal Surveillance Camera

1280x1024 / 12μm Uncooled FPA Detector for Thermal Surveillance Camera
1280x1024 / 12μm Uncooled FPA Detector for Thermal Surveillance Camera

Large Image :  1280x1024 / 12μm Uncooled FPA Detector for Thermal Surveillance Camera

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GST1212M
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 1280x1024 Pixel Pitch: 12μm
Frame Rate: 50/60Hz NETD: <30mK
Spectral Range: 8~14μm Size: 45x28.5x8mm
High Light:

1280x1024 Uncooled FPA Detector

,

12μm Uncooled FPA Detector

,

30mK Uncooled FPA Detector

GST1212M LWIR Infrared Detector



1280x1024 / 12μm Uncooled FPA Detector for Thermal Surveillance Camera with Ultra Clear Imaging



Product Description



GST1212M uncooled infrared detector is a kind of VOx microbolometer with the state-of-the-art 12µm pixel size and large array 1280x1024 resolution. Due to the rapid development of uncooled infrared focal plane detector technology, metal package uncooled infrared sensor has characteristics of significantly improved sensitivity, smaller pixel spacing, and larger array size.



Based on metal package technics and TEC technology, GST1212M uncooled infrared microbolometer has high sensitivity, stable performance characteristics and can present clear imaging quality in various kinds of harsh working environment such as total darkness, thick fog, heavy rain, snow, sand storm etc.



Now microbolometer detector is a mainstream uncooled infrared focal plane detector in the market and has the most mature technology and the highest market share. Due to its stable performance and long operating life, metal package thermal detector sensor is widely used in various fields and industries.



Main Features:



- NETD<30mk, High Sensitivity

- Mature Technology

- Stable Performance

- Long Operating Life

- Clear Image Quality & Details

- Strong Environmental Adaptability



Product Specifications



Model GST1212M
Material VOx
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mK
Digital Output Built-in 14bits ADC
Typical Responsivity 15mV/K
Thermal Response Time <12ms
Frame Rate 50/60Hz
Power Consumption <350mW
Dimension (mm) 45x28.5x8
Weight <50g
Operation Temperature -40°C ~ +85°C



Industrial Applications



The GST1212M uncooled fpa detector is widely used in many areas, such as Thermography, Security & Monitoring, Outdoors, Law Enforcement & Rescue, ADAS, UAV Payloads etc.



1280x1024 / 12μm Uncooled FPA Detector for Thermal Surveillance Camera 0





About Global Sensor Technology



1280x1024 / 12μm Uncooled FPA Detector for Thermal Surveillance Camera 1



FAQs



1. In which industries can the infrared detectors/thermal camera cores be used?



GST thermal camera modules are widely used in many industries such as:



- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention

- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety

- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue

- UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation

- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol

- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles

- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots

- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research.
