Wafer Level Packaging Uncooled Infrared Detectors LWIR Industrial IR Sensor

I'm Online Chat Now

Wafer Level Packaging Uncooled Infrared Detectors LWIR Industrial IR Sensor

Wafer Level Packaging Uncooled Infrared Detectors LWIR Industrial IR Sensor
Wafer Level Packaging Uncooled Infrared Detectors LWIR Industrial IR Sensor

Large Image :  Wafer Level Packaging Uncooled Infrared Detectors LWIR Industrial IR Sensor

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GST412W
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Pieces
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Type: Microbolometer Resolution: 400x300
Size: 18x16x2.8mm Weight: <1.5g
Pixel Pitch: 12μm Material: Vanadium Oxide
Spectral Range: 8~14μm NETD: <40mK
High Light:

Wafer Level Packaging Uncooled Infrared Detectors

,

GST Uncooled Infrared Detectors

,

LWIR Industrial Ir Sensor

About GST212W Uncooled Infrared Detector

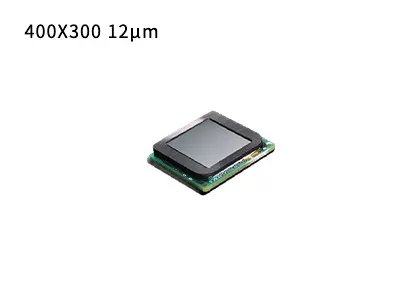

Wafer Level Packaging 400x300 / 12μm Uncooled LWIR Infrared Sensor for Infrared Applications



Product Description



GST412W VOx focal plane array (FPA) microbolometer adopts the Wafer Level Packaging (WLP) technology that has low cost and high yield on the market. Thanks to the wafer level packaging, the GST412W thermal infrared detector could produce clear infrared thermal image up to 120,000 pixels without compromise in size.



With 400x300 resolution and pixel size at 12μm, the GST412W long-wave infrared (LWIR) detector is sensitive to wavelength between 8 and 14µm. The uncooled VOx IR thermal sensor for the LWIR spectral region supports a wide variety of applications such as thermography, security monitoring, firefighting, autonomous driving, personal vision etc.



Global Sensor Technology specializes in the design, manufacture, sales and marketing of infrared thermal detectors and thermal sensor modules. After years of industrial application experience, we are capable to provide professional, efficient and convenient solutions for customers.



Main Features



- Resolution: 400x300
- Pixel Pitch: 12μm
- Small Size: 18x16x2.8
- Light Weight: <1.5g



Product Specifications



Model GST412W
Material VOx
Resolution 400x300
Pixel Pitch 12μm
Spectral Range 8-14μm
NETD <40mK
Digital Output Built-in 14bits ADC
Typical Responsivity 15mV/K
Thermal Response Time <12ms
Frame Rate 50/60Hz
Dimension (mm) 18x16x2.8
Weight <1.5g
Operation Temperature -40°C ~ +85°C



Industrial Applications



The GST412W uncooled microbolometer detector is widely used in many areas, such as Thermography, Security & Monitoring, Outdoors, UAVs Payload, Epedemic Prevention, ADAS, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.



Wafer Level Packaging Uncooled Infrared Detectors LWIR Industrial IR Sensor 0



Our Advantages



Wafer Level Packaging Uncooled Infrared Detectors LWIR Industrial IR Sensor 1

FAQs



1. How to choose proper infrared detector resolution?
It depends on the actual needs and applications of your products, and the price is also a factor that needs to be considered. If the image quality is not high, you can choose the infrared detector with low resolution, such as 120x90, 256x192, 400x300. If you need a very clear image for some special purposes, such as remote monitoring, you can choose a high resolution infrared detector of 1280x1024.



2. How to select right pseudo color for thermal imaging?
- The gray white is more suitable for the target with small temperature difference
- The red and blue is more suitable for the scene where the problem points need to be found.
- The iron red is the standard color palette of the power industry.
Note: no matter which palette you choose, the thermal temperature will not change at all.



3. How to choose a suitable infrared thermal camera lens?
- Standard lens can meet normal targets with appropriate distance
- For the telephoto lens, it’s suitable for targets that is relatively small and needs to be viewed from a long distance
- To see more detail of objects at close distance, wide angle lens is better.
- Macro lens is for seeing very tinny target with close distance, such as chip circuit.
