MWIR Cooled Thermal Camera Module 320x256 30μM For Methane Gas Leaks Detection
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Gas Leak Detection | Cryo Cooler | RS058/RS058I |
|---|---|---|---|
| Detector Resolution | 320x256 | Pixel Size | 30μm |
| NETD | 10mK (F1.5) | Spectral Range | 3.2±0.1~3.5±0.1μm |
| High Light | MWIR Cooled Thermal Camera Module,320x256 Methane Gas Imaging Module |
||
Product Description
320x256 30μM MWIR Cooled Thermal Camera Module For Methan Gas Leaks Detection
Product Description

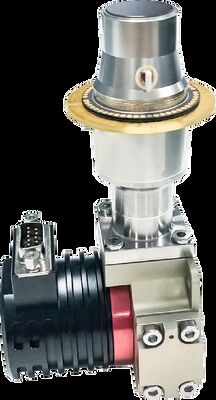

EYAS330G cooled AD module is developed on the basis of C330M-G cooled infrared detector and equipped with high performance signal processing circuit. It is an accelerator for customers who have difficulty in starting fast optical gas imaging system integration. By utilizing the infrared technology, the invisible volatile organic compounds (VOCs) leaks can be quickly and effectively detected to ensure the safety in production, transportation and processing of petrochemical enterprises.
Main Features
Shorten Development Cycle
• Adopt high-performance signal processing circuits to realize the conversion of analog signal to digital signal
• Support 12V power supply for explosion-proof certification
Easy & Fast Integration
• Cameralink interface output 16-bit RAW data, serial port control
• Integrated structure that has consistent dimension with detector
Product Specifications
| Model | EYAS330G | EYAS330G2 |
| Performance | ||
| Resolution | 320×256 | |
| Pixel Size | 30μm | |
| Cryocooler | RS058 | RS058I |
| Spectral Range | 3.2μm±0.1μm~3.5μm±0.1μm | |
| Cooling Time (25℃) | ≤6min30s | ≤7min |
| Typical NETD | 10mK (F1.5) | |
| Working Mode | ||
| Frame Rate | 1~200Hz (Adjustable) | |
| Working Mode | Snapshot; ITR Integration Mode; Windows Mode; Anti-blooming | |
| Electrical Specifications | ||
| Standard External Interface | QSH 60pin | |
| Digital Video | Cameralink Output: 16bit Raw Data | |
| External Sync | CC1: INT Frame External Sync CC2: MC External Sync |
|
| Communication | Cameralink Serial Port: TFG+/-, TC+/-, 9600bps | |
| Power Supply | Channel 1 Imaging Panel: 5V Channel 1 Cryocooler: 24V |
Channel 1 Imaging Panel: 5V Channel 1 Cryocooler: 12V |
| Stable Power Consumption | 7W | |
| Size (mm) | 142×58.5×71 | |
| Weight | ≤680g | |
| Working Temperature | -40°C~+60°C | |
Industrial Applications
The EYAS330G cooled AD module is used for visiualizing the invisible VOCs (volatile organic compounds) and detecting gas leakage such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.
