Home ProductsOptical Gas Imaging

Cooled Optical Gas Imaging Camera 320x256 / 30μm RoHS Certificate

I'm Online Chat Now

Cooled Optical Gas Imaging Camera 320x256 / 30μm RoHS Certificate

Cooled Optical Gas Imaging Camera 320x256 / 30μm RoHS Certificate
Cooled Optical Gas Imaging Camera 320x256 / 30μm RoHS Certificate

Large Image :  Cooled Optical Gas Imaging Camera 320x256 / 30μm RoHS Certificate

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GAS330
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Sensor: IR Sensor Technology: Infrared
Resolution: 320x256 / 30μm Size: 155x67x80mm
NETD: ≤15mK Spectral Range: 3.2±0.1~3.5±0.1μm
High Light:

Cooled Optical Gas Imaging Camera

,

Optical Gas Imaging Camera 320x256

Gas Leak Detection Camera

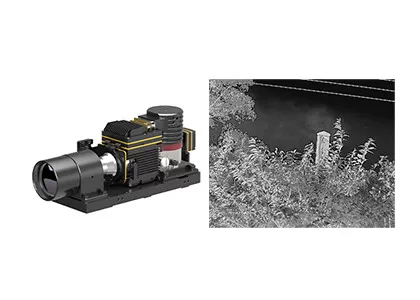

GST GAS330 Gas Leakage Detector Camera with 320x256 / 30μm Cooled Infrared Detector



Product Description



Driven by improvements in production methods, the production and use of industrial gas has grown rapidly. While bringing benefits to the factory, the hidden danger of gas leakage is also increasingly serious. Optical gas imaging (OGI) is a commonly utilized and very effective way to detector the gas leak in the industrial factories.



GAS330 infrared gas leak detection camera developed by Global Sensor Technology is specific for detecting minute fugitive emissions of industrial gases. With a customized 320x256 / 30µm cooled infrared detector, it works in the spectral range of 3.2~3.5µm for VOCs leak detection.



Global Sensor Technology has more than 10 years of experience in infrared thermal imaging solutions and also many successful integration cases for the gas leak detection. We are confident to provide you with satisfactory service.



Main Features



- Resolution: 320x256

- Pixel Pitch: 30µm

- NETD≤15mK, High Sensitivity

- Spectral Response: 3.2µm±0.1µm~3.5µm±0.1µm

- Wavelength Customizable Based on Different Requirements

- Integrate with DVP/CameraLink Interface Easily



Product Specifications



Model GAS330
IR Detector Performance
Resolution 320x256
Pixel Pitch 30μm
Cryocooler RS058
Spectral Range 3.2μm±0.1μm~3.5μm±0.1μm MW
Cooling Time (20°C) ≤8min
NETD (20°C) ≤15mK
Image Processing
Frame Rate 30Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin
Analog Video PAL
Digital Video 16bit RAW/YUV: 16bit DVP/Cameralink Output
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 20~28VDC
Stable Power Consumption 12W
Dimension (mm) 155×67×80
Weight ≤900g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Fixed Zoom: 23mm/F1.5; 55mm/F1.5



Industrial Applications



The GAS330 gas leak detection thermal imaging camera is used for visiualizing the invisible VOCs (volatile organic compounds) and detecting gas leakage such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.



Our Advantages



Cooled Optical Gas Imaging Camera 320x256 / 30μm RoHS Certificate 0



FAQs



1.What is infrared detector / thermal imaging sensor?

Infrared waves cannot be seen with the human eye. Infrared detector / thermal imaging sensor is an optical-electrical device to react to infrared radiation and thermal energy and convert it into electrical signal and then output visible thermal images.



2.What is WLP?

WLP refers to wafer level package. It is the process of completing high vacuum packaging directly on the entire MEMS wafer, then scribing and cutting to make a single infrared sensor. Together with metal package, ceramic package, they are the 3 main package formats of uncooled infrared detectors.



3. What's the advantage of WLP?

WLP IR detectors are specially designed to meet the miniaturization and low cost requirement in the application of infrared technology to consumer electronics market. Global Sensor Technology, with volume fabrication capability, is now offering a variety of WLP infrared module solutions to boost more new applications of emerging markets.
