320x256 30μm Cooled Infrared Camera Module for Non contact Gas Leakage Detection

I'm Online Chat Now

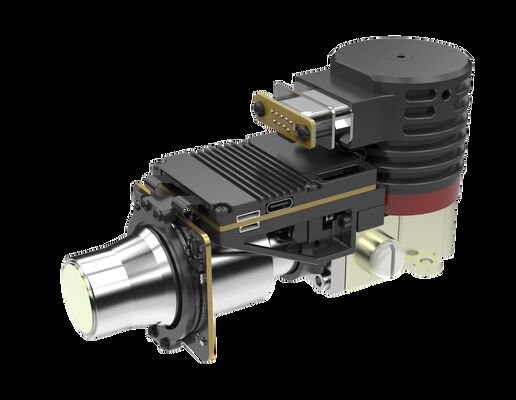

320x256 30μm Cooled Infrared Camera Module for Non contact Gas Leakage Detection

320x256 30μm Cooled Infrared Camera Module for Non contact Gas Leakage Detection
320x256 30μm Cooled Infrared Camera Module for Non contact Gas Leakage Detection

Large Image :  320x256 30μm Cooled Infrared Camera Module for Non contact Gas Leakage Detection

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GAS330
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 320x256 / 30μm Spectral Range: 3.2±0.1~3.5±0.1μm
NETD: ≤15mK Frame Rate: 30Hz
Product Size: 155x67x80mm Product Weight: ≤900g
High Light:

320x256 Infrared Camera Module

,

15mK Infrared Camera Module

,

900g Cooled Infrared Camera

GST GAS330 for Gas Leak Detection



320x256 / 30μm GAS330 Cooled Infrared Camera Module for Non-contact Gas Leakage Detection



Product Description



GAS330 is a cooled infrared thermal imaging module specially designed for gas leakage detection. It uses 320x256 / 30μm cooled MWIR infrared detector. It utilizes spectral wavelength filtering technology to visualize the invisible VOCs (Volatile Organic Compounds) that cannot be seen by naked eyes.



GAS330 infrared gas leak detection camera is specific for detecting minute fugitive emissions of industrial gases. Its high sensitivity is suitable for detection scene with low gas concentration and slow gas flow rate. Inspectors can find the gas that pollutes the environment or is harmful to personnel assets, and timely avoid profitable gas loss.



Its real time non-contact measurement is also helpful for inspectors to detect the gas leakage in dangerous areas or areas that are difficult to access, so as to ensure the safety of inspection personnel. It has great application value in safety production, environmental protection supervision and cost saving.



Main Features



- Resolution: 320x256

- Pixel Pitch: 30µm

- NETD≤15mK, High Sensitivity

- Spectral Response: 3.2µm±0.1µm~3.5µm±0.1µm

- Wavelength Customizable Based on Different Requirements

- Integrate with DVP/CameraLink Interface Easily



Product Specifications



Model GAS330
IR Detector Performance
Resolution 320x256
Pixel Pitch 30μm
Cryocooler RS058
Spectral Range 3.2μm±0.1μm~3.5μm±0.1μm MW
Cooling Time (20°C) ≤8min
NETD (20°C) ≤15mK
Image Processing
Frame Rate 30Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin
Analog Video PAL
Digital Video 16bit RAW/YUV: 16bit DVP/Cameralink Output
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 20~28VDC
Stable Power Consumption 12W
Dimension (mm) 155×67×80
Weight ≤900g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Fixed Zoom: 23mm/F1.5; 55mm/F1.5



Industrial Applications



The GAS330 gas leak detection thermal imaging camera is used for visiualizing the invisible VOCs (volatile organic compounds) and detecting gas leakage such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.



About GST IR Detectors



320x256 30μm Cooled Infrared Camera Module for Non contact Gas Leakage Detection 0



FAQs



1.What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.



2. What is the advantage of infrared thermal imaging?

---See through total darkness;

---Identification under camouflage;

---Long range detection;

---Heat distribution detection;

---Non-contact temperature measurement;

---Occupation awareness



3. What is the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
