23mm Lens MWIR Optical Gas Imaging Camera for Visualizing Gas Leak

23mm Lens MWIR Optical Gas Imaging Camera for Visualizing Gas Leak
23mm Lens MWIR Optical Gas Imaging Camera for Visualizing Gas Leak

Large Image :  23mm Lens MWIR Optical Gas Imaging Camera for Visualizing Gas Leak

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GAS330
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Style: Cooled Infrared Module Resolution: 320x256 / 30μm
NETD: ≤15mK Spectral Range: 3.2±0.1~3.5±0.1μm
Size: 155x67x80mm Optional Lens: Fixed Zoom
High Light:

MWIR Optical Gas Imaging Camera

,

23mm Optical Gas Imaging Camera

,

15mK MWIR Detector

GAS Leakage Detection Camera



MWIR 320x256 / 30μm Cooled Gas Leakage Detector Camera with 23mm Lens for Visualizing Gas Leak



Product Description

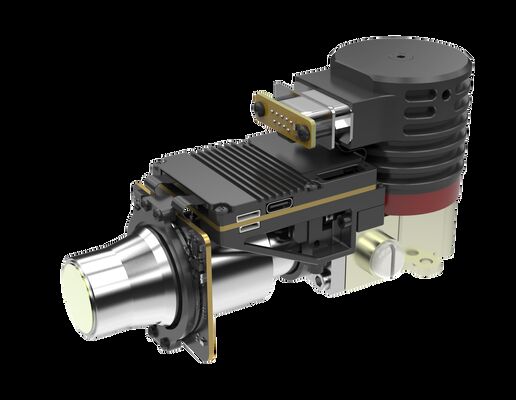

GAS330 is a cooled infrared camera module for gas leakage detection. It integrates 320x256 / 30µm MCT cooled MWIR infrared detector to visualize the invisible Volatile Organic Compounds (VOCs) that cannot be seen by naked eyes.



Gas leakage, especially the harmful Volatile Organic Compounds, is always a serious problem that can not be ignored in safety production. Once these harmful gases escape, or worse, cause an explosion, people and property will suffer huge losses. Therefore, great attention should be paid to the detection of gas leakage.



Global Sensor Technology (GST) provides customers with various l infrared thermal imaging integration solutions professional technical supports and a full range of after-sales services of gas leak detection. Camera manufacturers can quickly integrate the infrared module and design their own gas leak detection camera easily and efficiently.



Main Features



- Resolution: 320x256

- Pixel Pitch: 30µm

- NETD≤15mK, High Sensitivity

- Spectral Response: 3.2µm±0.1µm~3.5µm±0.1µm

- Wavelength Customizable Based on Different Requirements

- Integrate with DVP/CameraLink Interface Easily



Product Specifications



Model GAS330
IR Detector Performance
Resolution 320x256
Pixel Pitch 30μm
Cryocooler RS058
Spectral Range 3.2μm±0.1μm~3.5μm±0.1μm MW
Cooling Time (20°C) ≤8min
NETD (20°C) ≤15mK
Image Processing
Frame Rate 30Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin
Analog Video PAL
Digital Video 16bit RAW/YUV: 16bit DVP/Cameralink Output
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 20~28VDC
Stable Power Consumption 12W
Dimension (mm) 155×67×80
Weight ≤900g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Fixed Zoom: 23mm/F1.5; 55mm/F1.5



Industrial Applications



The GAS330 gas leak detection thermal imaging camera is used for visiualizing the invisible VOCs (volatile organic compounds) and detecting gas leakage such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.



Our Product Line



23mm Lens MWIR Optical Gas Imaging Camera for Visualizing Gas Leak 0



FAQs



1. What is NETD?

NETD refers to "Noise Equivalent Temperature Difference". It is a measure for how well a thermal imaging detector is able to distinguish between very small differences in thermal radiation in the image. NETD is typically being expressed in milli-Kelvin (mK). Usually the lower the NETD figure is, the higher the thermal sensitivity indicates.



2. In which industries can the infrared detectors/thermal camera cores be used?

GST infrared detectors / thermal camera cores are widely used in many industries such as:

- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention

- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety

- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue

- UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation

- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol

- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles

- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots

- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research.
