VOx FPA Microbolometer Thermal Imaging Binoculars Uncooled 640×512

I'm Online Chat Now

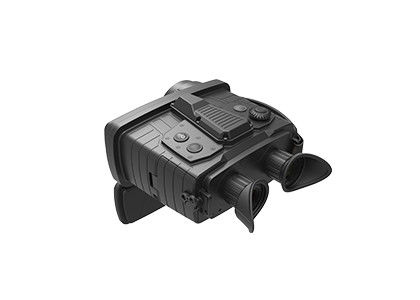

VOx FPA Microbolometer Thermal Imaging Binoculars Uncooled 640×512

VOx FPA Microbolometer Thermal Imaging Binoculars Uncooled 640×512
VOx FPA Microbolometer Thermal Imaging Binoculars Uncooled 640×512

Large Image :  VOx FPA Microbolometer Thermal Imaging Binoculars Uncooled 640×512

Product Details:
Place of Origin: WUHAN
Brand Name: GST
Model Number: IR522-WM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Payment Terms: L/C, T/T
Detailed Product Description
Type: Uncooled Thermal Binocular Infrared Camera Detector: Cooled MWIR FPA 640x512/15μm
Infrared Camera FOV: Max FOV: ≥7.42°×5.35°/Min FOV: ≥2.33°×1.86° Visual Camera: Max FOV:≥7.5°x5.34°/Min FOV:≥1.8°x1.3°
High Light:

FPA Microbolometer Thermal Imaging Binoculars

,

VOx Thermal Imaging Binoculars

,

Uncooled Thermal Camera Binoculars 640×512


Brief Introduction


Uncooled Thermal Imaging Binoculars with Laser Rangefinder


Product Description


IR522-WM is a multi-functional handheld uncooled thermal binocular with continuous optical zoom designed for dynamic environments, such as ranging from moving platforms and/or ranging moving targets. The thermal imaging binocular integrates both infrared camera and visual camera for precise, real-time measurement for greater reliability.

Its infrared camera offers clear temperature data with uncooled 640x512 MWIR focal plane array infrared detector and field of view ranging from 2.33°×1.86° to 7.42°×5.35°.

This thermal imaging binocular is able to locate target in daylight and at night and has a high performance laser rangefinder that ensures accurate location of target, even in poor weather conditions.


Main Features


- With high accuracy, repeat frequency, stable laser rangefinder
- Support self and target positioning function that has fast operation, strong signal and high accuracy
- With target recognition and mark functions


Specifications



Model IR522-WM
Infrared Camera
Detector Type Uncooled VOx FPA Microbolometer
Resolution 640×512
Pixel Pitch 12μm
FOV ≥6.1°×5.0°
Visual Camera
Field of View ≥3°x2.2°
Fog Penetration Yes. When visibility ≤4km, fog penetration ratio ≥1.5
Laser Rangefinder
LRF Range Min Range≤50m; Max Range: ≥6km
Measuring Error ≤2m
Accuracy Rate ≥98%
Laser Wavelength 1.535μm, Safe band for human eyes
Interface (With external power supply interface)
Data Interface Standard USB Port
Video Interface Standard PAL
Communication Interface Standard RS232
Beidou Positioning Accuracy
Horizontal Positioning ≤10m (CEP)
Elevation Positioning ≤10m (PE)
Positioning Accuracy
Magnetic Azimuth Accuracy ≤0.5° (RMS, Inclination Range -15°~+15°)
Target Positioning Accuracy ≤20m (CEP) When the observation distance is 2km
Power Supply
Continuous Working Time ≥10h (Room Temperature)
Physical Characteristics
Net Weight ≤1.6kg
Gross Weight ≤2.3kg
Environmental Adaptability
Working Temperature -40 °C ~+55°C
Storage Temperature -55 °C ~+70°C



FAQs



1.Thermal imaging binoculars vs. night vision binoculars



Compared with thermal imaging binoculars, night vision binoculars are much cheaper.



Thermal imaging binoculars collect infrared radiation and turn it into a thermogram. They don’t rely on light and nor emit infrared ray actively. They can be effective in day and night which has poor light conditions or total darkness and even in harsh environments such as rain, snow, dust and haze etc.



While night vision relies on visible light. They collect ambient light, moonlight or starlight and amplify it to detect targets in the dark. They cannot be used during the day, because they maybe damaged. And also they cannot see through bushes, smoke, fog or rain.



About Global Sensor Technology



VOx FPA Microbolometer Thermal Imaging Binoculars Uncooled 640×512 0

VOx FPA Microbolometer Thermal Imaging Binoculars Uncooled 640×512 1


Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

GST IR detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of GST enables it to meet the growing demand from all existing and emerging markets.
