PAL Handheld Laser Rangefinder 25fps With Power Adapter

I'm Online Chat Now

PAL Handheld Laser Rangefinder 25fps With Power Adapter

PAL Handheld Laser Rangefinder 25fps With Power Adapter
PAL Handheld Laser Rangefinder 25fps With Power Adapter

Large Image :  PAL Handheld Laser Rangefinder 25fps With Power Adapter

Product Details:
Place of Origin: WUHAN
Brand Name: GST
Model Number: IR5212-WM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Payment Terms: L/C, T/T
Detailed Product Description
Type: Handheld Laser Rangefinder Low Light Resolution: 1920Hx1200V
Visible Light Resolution: 2560Hx1440V Power Consumption: 3.5V
High Light:

25fps Handheld Laser Rangefinder

,

PAL Handheld Laser Rangefinder

25fps Visible Light And Low Light Handheld Laser Rangefinder

Brief Introduction

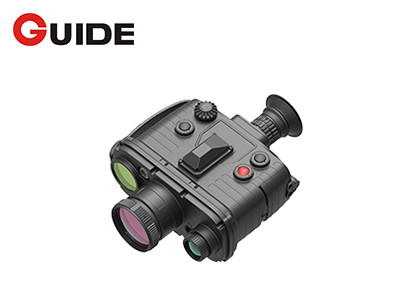

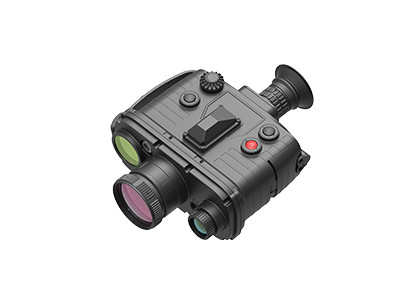

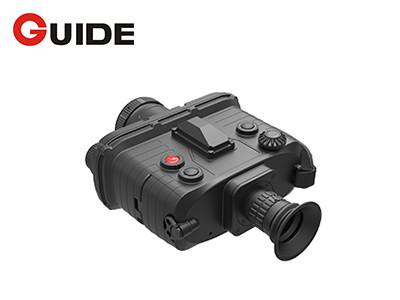

IR5212-WM New Handheld Laser Rangefinder


Product Description


The IR5212-WM is a new hand-held laser rangefinder with a certain ability to identify camouflage. The product has two modes: visible light and low light, which can be used for day and night observation. It has also other functions like image / video storage, playback and delete, speech recognition and broadcast etc.

This laser rangefinder could measure distance between multiple target points, and also memorize target bearing, distance and time. It
supports power control (on/off), switching mode, contrast adjustment, brightness adjustment, focusing, video output, serial communication interface, local OLED display and connection to external display.


Main Features


- Low light detector: 12μm low illuminance digital CMOS image sensor
- Visible light detector: 3μm digital CMOS image sensor
- Storage memory: 64GB
- Pic format: JPEG/PNG
- Video format: AVI


Specifications



Model IR5212-WM
Low Light
Detector 12μm Low Illuminance Digital CMOS Image Sensor
Resolution 1920Hx1200V
Frame Rate 25fps
Focus Length 70mm
FOV 9°x6.7° (±5%)
Visible Light
Detector 3μm Digital CMOS Image Sensor
Resolution 2560Hx1440V
Frame Rate 25fps
Focus Length 105mm
FOV 3°x2.2° (±5%)
Storage
Memory 64GB
Pic Format JPEG/PNG
Video Format AVI
Display
Color OLED High Resolution Color OLED
Ocular Monocular
Interface
Video PAL
Digital USB
Power Supply
Built-in Battery 18650
Power Consumption 3.5V
Environmental Adaptability
Working Temperature -40℃~+55℃
Storage Temperature -55℃~+70℃
Physical Characteristics
Weight ≤1.6kg
Dimension ≤221mmx105mmx141mm
Accessories
Standard Battery
Charger
Safety Box
External Cable
Power Adapter
Optional Tripod
Portable Bag



FAQs



1.Thermal imaging binoculars vs. night vision binoculars



Compared with thermal imaging binoculars, night vision binoculars are much cheaper.



Thermal imaging binoculars collect infrared radiation and turn it into a thermogram. They don’t rely on light and nor emit infrared ray actively. They can be effective in day and night which has poor light conditions or total darkness and even in harsh environments such as rain, snow, dust and haze etc.



While night vision relies on visible light. They collect ambient light, moonlight or starlight and amplify it to detect targets in the dark. They cannot be used during the day, because they maybe damaged. And also they cannot see through bushes, smoke, fog or rain.



About Global Sensor Technology


PAL Handheld Laser Rangefinder 25fps With Power Adapter 0
Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

Global Sensor Technology is located at Optics Valley, China. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room settled for its three 8 inch fabrication lines. Thanks to the innovative and experienced staff, advanced fabrication facilities, and cutting-edge technique level, all key fabrication processes such as element purification, epitaxy growth, chip tape-out and fabrication, vacuum packaging can be done in house. The company successfully launched state-of-the-art VOx uncooled detectors, MCT and T2SL cooled detectors with full intellectual property. The product portfolio covers many different array formats, various pixel size and multiple spectral band combination, all products with high thermal sensitivity and reliability.

GST IR detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of GST enables it to meet the growing demand from all existing and emerging markets.
