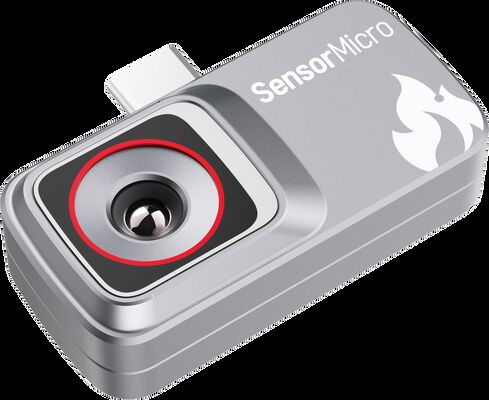

Uncooled Infrared Camera Module 256×192/12μm Pixel Size for Consumer Electronics

  • Uncooled Infrared Camera Module 256×192/12μm Pixel Size for Consumer Electronics
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Lens(HFOV/FL) 56°/ 3.2mm Storage Temperature -45℃~+85℃
Spectral Response 8~14μm Output Data 14bit Raw
Frame Rate 25Hz Typical Power Consumption 300mW
Highlight

Small UAV EO IR Systems

,

10KM EO IR Systems

,

Airborne 2 Axis Electro Optics Systems
Leave a Message
Product Description
Uncooled Infrared Camera Module 256×192/12μm Pixel Size for Consumer Electronics
The iMC212 infrared miniature module is built on the self-developed TIMO212 module, specifically designed for mobile terminal applications. Integrated with an infrared ISP processing board and structural components, it supports direct output of thermal images and temperature matrices without requiring temperature calibration, significantly reducing development effort. This ultra-compact module offers cost-effective performance with low power consumption, featuring universal control interfaces that simplify integration and development processes.
Main Features
Portable and Cost-Effective
  • Equipped with a self-developed 256×192/12μm wafer-level infrared detector, offering significant cost advantages
  • Ultra-compact design, ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with ISP Processing Board and Intelligent Image Algorithm to output thermal images and temperature matrices directly
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Provides standard and widely compatible USB 2.0 digital video output interface
  • Factory-calibrated temperature data, eliminating additional development requirements
Technical Specifications
Model iMC212
Resolution 256×192
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 56°/3.2mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 300mW
Temperature Measurement Range -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃~60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Core Technology
Strong R&D Capabilities
SensorMicro is one of China's earliest companies researching antimonide-based Type-II superlattice (T2SL) cooled infrared detectors. We pioneered the mass production and engineering application of such detectors domestically, with proven capabilities in R&D and manufacturing of high-end advanced devices, including MWIR, LWIR, large-format arrays, and high-operating-temperature (HOT) detectors.
Leading Technological Achievements
SensorMicro leads the development trend of SWaP³ technology in the industry, and is far ahead of similar products in the fields of large-format array, small pixel, high-temperature operation, miniaturization, high performance, and low power consumption.
Complete Supply Chain
From cutting-edge chip design and precise cooler manufacturing to high vacuum packaging processes, we have achieved a stable supply chain, reliable quality, and significant cost advantages with integrated technology.
