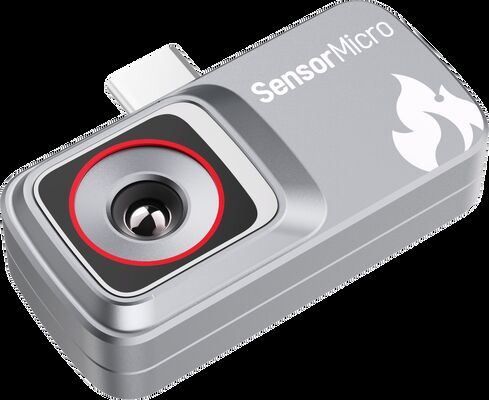

256×192 Resolution Uncooled LWIR FPA Plug-in Thermal Camera with USB2.0 Interface

  • 256×192 Resolution Uncooled LWIR FPA Plug-in Thermal Camera with USB2.0 Interface
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Infrared Detector Uncooled LWIR FPA 256×192/12μm Typical Power Consumption 300mW
Digital Video Interface USB2.0 Focus Mode Focus Free
NETD ≤50mK Lens(HFOV/FL) 56°/ 3.2mm
Highlight

EO Dual Sensor Tracking System

,

IR Gimbal Payload Sensor Tracking System
Leave a Message
Product Description
GDES-450H55 EO IR Gimbal Payload Dual Sensor Tracking System
Product Overview
The iMC212 infrared miniature module is built on the self-developed TIMO212 module, targeting mobile terminal applications. Integrated with an infrared ISP processing board and structural components, it supports direct output of thermal images and temperature matrices without the need for temperature calibration, significantly reducing development effort. This ultra-compact module offers cost-effective performance with low power consumption, featuring universal control interfaces that simplify integration and development processes.
Main Features
Portable and Cost-Effective
  • Equipped with self-developed 256×192/12μm wafer-level infrared detector with significant cost advantages
  • Ultra-compact design ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with ISP Processing Board and Intelligent Image Algorithm for direct thermal image and temperature matrix output
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Standard USB 2.0 digital video output interface with wide compatibility
  • Factory-calibrated temperature data eliminates additional development requirements
Technical Specifications
Model iMC212
Resolution 256×192
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 56°/ 3.2mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 300mW
Temperature Measurement Range -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
Our Service Approach
Pre-Sales
  • Requirement Analysis
  • Scenario Assessment
  • Product Selection
  • Customized Solutions
Deployment
  • Rapid Delivery
  • System Integration & Testing
  • Technical Training
  • Application Guidance
After-Sales
  • Remote Diagnostics
  • Warranty Service
  • Firmware Upgrades
  • Technical Maintenance
Production Capabilities
In-House Infrared Detector Technologies
  • 8-inch 0.11μm VOx Uncooled Infrared Detectors
  • 8-inch 0.5μm MCT Cooled Infrared Detectors
  • 8-inch 0.5μm T2SL Cooled Infrared Detectors
Production Capacity & Advantages
  • 6 million self-developed infrared detectors per year
  • 30,000 m² semiconductor fabrication facility
  • 20,000 m² cleanroom area
Frequently Asked Questions
What are the applications of infrared thermal imaging?
All-Weather Monitoring
  • Night Surveillance: See the unseen beneath the cover of darkness
  • Temperature Monitoring: Non-contact temperature measurement from a distance
  • Long-Range Monitoring: Unhindered by environmental conditions
Firefighting & Rescue
  • Fire Scene Reconnaissance: See through smoke and fog
  • Early Fire Detection & Rescue: Locate survivors and contain fires quickly
  • Forest Fire Prevention: Protect natural resources and ecosystems
Temperature Measurement
  • Industrial Inspection: Identify anomalies and improve efficiency
  • Healthcare: Assist diagnosis and safeguard health
  • HVAC: Detect leaks and conserve energy
Outdoors
  • Wildlife Observation: Support conservation efforts
  • Outdoor Exploration: Track heat signatures with ease
Recreational Use
  • Fun with Infrared: Add new dimensions to entertainment
Machine Vision
  • Automated Inspection: Monitor industrial heat zones
  • Robotics: Enable intelligent vision systems
  • Advanced Manufacturing: Thermal data for smarter production
AIoT
  • Smart Home: Create intelligent living environments
  • ADAS: Enhance vehicle safety systems
  • Mobile Plug-in: Instant infrared vision capabilities
Optical Gas Imaging
  • Petrochemical: Detect leaks with optical gas imaging
  • Power Maintenance: Early leak detection for electrical safety
  • Environmental Monitoring: Protect ecosystems from hazardous leaks
