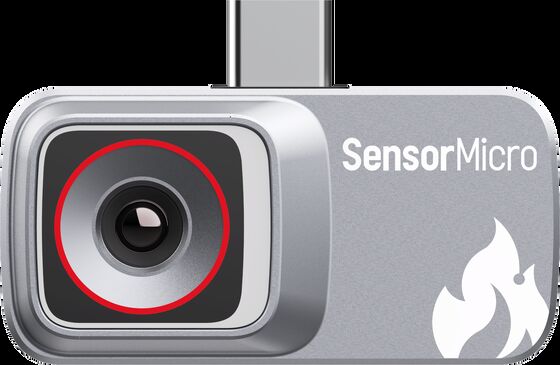

iMC212 Infrared Miniature Module with 256×192/12μm for Portable Devices

  • iMC212 Infrared Miniature Module with 256×192/12μm for Portable Devices
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage 3.3V±0.1V Infrared Detector Resolution 256x192
Used For Mobile Terminal Applications Typical Power Consumption 300mW
Temperature Measurement Accuracy Greater Of ±2℃ / ±2% Operating Temperature -20℃～-60℃
Highlight

Airborne Payload EO IR Sensors

,

EO IR Sensors Camera Gimbal System

,

640x512 EO IR Systems
Leave a Message
Product Description
iMC212 Infrared Miniature Module 256*192/12μm for Portable Devices
The iMC212 infrared miniature module is built on our self-developed TIMO212 module, specifically designed for mobile terminal applications. Integrated with an infrared ISP processing board and structural components, it supports direct output of thermal images and temperature matrices without requiring temperature calibration, significantly reducing development effort. This ultra-compact module offers cost-effective performance with low power consumption and universal control interfaces that simplify integration.
Main Features
Portable and Cost-Effective
  • Equipped with self-developed 256*192/12μm wafer-level infrared detector for significant cost advantages
  • Ultra-compact design ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Integrated ISP processing board and intelligent image algorithm for direct thermal image and temperature matrix output
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Standard USB 2.0 digital video output interface for wide compatibility
  • Factory-calibrated temperature data eliminates additional development requirements
Technical Specifications
ModeliMC212
Resolution256*192
Pixel Size12μm
Spectral Response8~14μm
NETD≤50mK
Output Data14bit Raw
Frame Rate25Hz
Focus ModeFocus Free
Lens (HFOV/FL)56°/ 3.2mm
Digital Video InterfaceUSB2.0
Operating Voltage3.3V±0.1V
Typical Power Consumption300mW
Temperature Measurement Range-20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement AccuracyGreater of ±2℃ / ±2%
Operating Temperature-20℃～-60℃
Humidity5%~85%
Storage Temperature-45℃~+85℃
CertificationCE, FCC, RoHS
Our Core Strengths
Stable Supply
Boasting a stable and reliable supply chain across our full ecosystem, we can respond quickly to market demands.
Sustaining Innovation
With expertise in detector manufacturing and system integration experience, we continuously optimize designs through technical feedback and product upgrades.
Cost Advantage
By managing the entire production chain and leveraging efficient, large-scale manufacturing, we deliver competitive pricing.
Production Capability
In-House Infrared Detector Technologies
  • 8-inch 0.11μm VOx Uncooled Infrared Detectors
  • 8-inch 0.5μm MCT Cooled Infrared Detectors
  • 8-inch 0.5μm T2SL Cooled Infrared Detectors
Production Capacity & Advantages
  • 6 million self-developed infrared detectors per year
  • 30,000 m² semiconductor fabrication facility
  • 20,000 m² cleanroom area
About SensorMicro
Focusing on infrared thermal imaging technology and driven by user needs, SensorMicro is committed to the in-depth development and continuous improvement of infrared products and application solutions. We deliver advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries.
