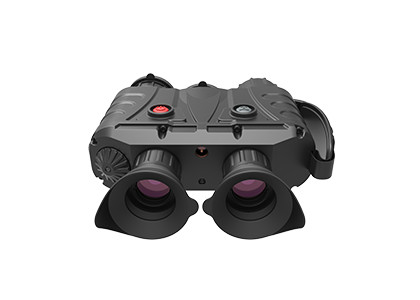

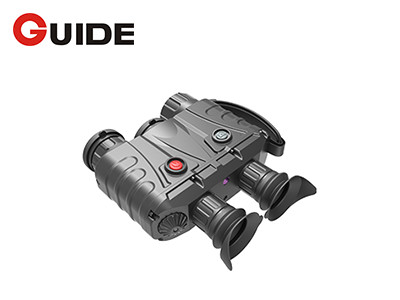

Handheld Infrared Low Light Fusion Binocular 800x600
IR528-WM Infrared & Low Light Fusion Thermal Binocular
The IR528-WM is a kind of hand-held infrared & low light fusion binocular which is mainly used for observing scenes day and night, with a certain ability to recognize camouflage. The binocular has low light, thermal imaging, fusion of black and white, fusion of colors modes.
- Support 4 modes: low light, thermal imaging, fusion of black & white and fusion of colors
- Various control functions: image / video storage, playback and deletion
- Support undervoltage indication, battery reverse connection protection
- Support power control (on/off), switching mode, contrast adjustment, brightness adjustment, focusing
- Support video output, serial communication interface, local OLED display and connection to external display
Model | IR528-WM |
Infrared Camera | |
Detector Type | Uncooled VOx FPA Microbolometer |
Resolution | 800×600 |
Pixel Pitch | 17μm |
FOV | 16°×12° |
Power Supply | |
Built-in Battery | 18650 (4 pcs) |
Power Consumption | ≤ 5.5W |
Continuous Working Time | ≥6h (Room Temperature) |
Storage | |
Built-in Storage | Support storage of no less than 10,000 original static images and no less than 2h videos |
Physical Characteristics | |
Weight | ≤1.2kg (With Battery) |
Environmental Adaptability | |
Working Temperature | -40 °C ~+55°C |
Storage Temperature | -55 °C ~+70°C |
Accessories | |
Standard | Battery Charger Safety Box External Cable Power Adapter |
Optional | Tripod Portable Bag |
1.Thermal imaging binoculars vs. night vision binoculars
Compared with thermal imaging binoculars, night vision binoculars are much cheaper.
Thermal imaging binoculars collect infrared radiation and turn it into a thermogram. They don’t rely on light and nor emit infrared ray actively. They can be effective in day and night which has poor light conditions or total darkness and even in harsh environments such as rain, snow, dust and haze etc.
While night vision relies on visible light. They collect ambient light, moonlight or starlight and amplify it to detect targets in the dark. They cannot be used during the day, because they maybe damaged. And also they cannot see through bushes, smoke, fog or rain.
