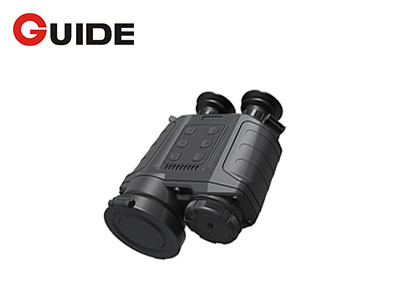

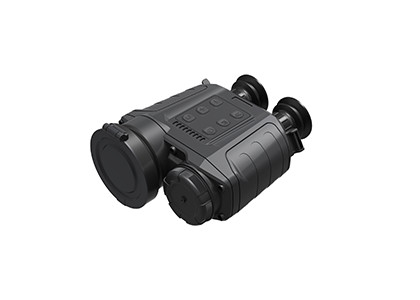

Uncooled Thermal Imaging Binoculars 640x512 With Infrared Camera

I'm Online Chat Now

Uncooled Thermal Imaging Binoculars 640x512 With Infrared Camera

Uncooled Thermal Imaging Binoculars 640x512 With Infrared Camera
Uncooled Thermal Imaging Binoculars 640x512 With Infrared Camera

Large Image :  Uncooled Thermal Imaging Binoculars 640x512 With Infrared Camera

Product Details:
Place of Origin: WUHAN
Brand Name: GST
Model Number: IR516C
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Payment Terms: L/C, T/T
Detailed Product Description
Type: Uncooled Thermal Binocular Image Capture: Yes
Video Record: Yes Replay Fuction: Yes
High Light:

Uncooled Infrared Thermal Imaging Binoculars

,

640x512 Resolution Thermal Imaging Binoculars

Brief Introduction



Dual Sensor Uncooled Thermal Binocular with Infrared camera, Visual camera



Product Description



The IR516C portable uncoooled thermal binocular can detect hidden targets in very poor light conditions or total darkness, especially in harsh weather with wind, fog, rain and snow.


The IR516C supports image capture, video record as well as replay functions. It meets various observation requirements of detection, identification and recognition of heat target and is of great use particularly in complicated surroundings.



Main Features



- Realize detection, identification and recognition of targets with thermal imaging technology
- Built-in photo, video recorder and replay functions
- Output photo and video via USB interface
- Support infrared electric focusing, pseudo color, 2х/4x magnification and cursor control
- Support adjustment of infrared contrast, brightness, auto compensation and display control of heat trace



Specifications



Model IR516C
Infrared Camera
Detector Uncooled VOx FPA Microbolometer
Resolution 640x512
Pixel Pitch 12μm
Spectral Range 8-14μm
Infrared Optics
Focal Length 61mm
FOV 7.32°X5.86°
F# 0.8
Storage
Memory 32G
Pic Format JPG
Video Format AVI
Display
Color OLED High Resolution OLED
Ocular Monocular
Power Supply
Input Voltage DC12V±0.5V
Battery 18650/2 pcs
Continuous Working Time >4hs (Room Temp.)
Physical Characteristics
Weight ≤1.5kg
Dimension ≤215x170x100mm
Mount Type 1/4" Socket
Environmental Adaptability
Working Temperature -40 ℃-+55℃
Storage Temperature -40℃-+60℃
Accessories
Standard Battery
Charger
Portable Bag
Safety Box
External Cable
External Display Terminal
Power Adaptor
Tripod
Portable Bag



FAQs



1.What is the difference between low light, active IR and thermal imaging?



Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier;

Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment;

Thermal imaging doesn’t need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.



2. Can you block thermal imaging?

In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don’t want to be detected, you can conceal behind glass or walls to block the thermal imaging.
