98% Accuracy Rate Uncooled Thermal Imaging Binoculars With Dual Sensors

I'm Online Chat Now

98% Accuracy Rate Uncooled Thermal Imaging Binoculars With Dual Sensors

98% Accuracy Rate Uncooled Thermal Imaging Binoculars With Dual Sensors
98% Accuracy Rate Uncooled Thermal Imaging Binoculars With Dual Sensors

Large Image :  98% Accuracy Rate Uncooled Thermal Imaging Binoculars With Dual Sensors

Product Details:
Place of Origin: WUHAN
Brand Name: GST
Model Number: IR522-WM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Payment Terms: L/C, T/T
Detailed Product Description
Type: Uncooled Thermal Binocular Infrared Camera: Uncooled VOx FPA Microbolometer
Used For: Observation, Surveillance, Search And Rescue Laser Wavelength: 1.535μm, Safe Band For Human Eyes
High Light:

98% Accuracy Rate Thermal Imaging Binoculars

,

Dual Sensors Thermal Imaging Binoculars

Brief Introduction

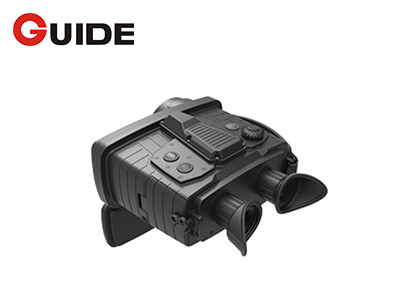

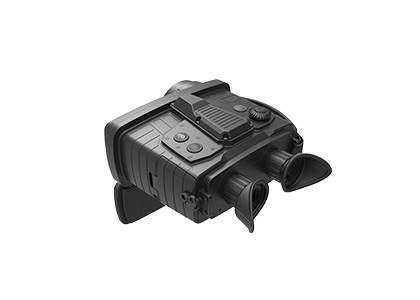

IR522-WM Handheld Continuous Optical Zoom Uncooled Thermal Imaging Binoculars



Product Description



IR522-WM is a multi-functional handheld uncooled thermal binocular with continuous optical zoom. Combined with dual sensors, the IR522-WM thermal imaging binocular could output clear thermal imaging with 640x512 resolution in total darkness or even in harsh environments with poor light condition. It also integrates the visual camera that offers field of view more than 3°x2.2°.



This binocular is able to locate target in daylight and at night and has a high performance laser rangefinder that ensures accurate location of target. It is dedicated to long range target location and surveillance.



Main Features



- With high accuracy, repeat frequency, stable laser rangefinder
- Support self and target positioning function that has fast operation, strong signal and high accuracy
- With target recognition and mark functions



Specifications



Model IR522-WM
Infrared Camera
Detector Type Uncooled VOx FPA Microbolometer
Resolution 640×512
Pixel Pitch 12μm
FOV ≥6.1°×5.0°
Visual Camera
Field of View ≥3°x2.2°
Fog Penetration Yes. When visibility ≤4km, fog penetration ratio ≥1.5
Laser Rangefinder
LRF Range Min Range≤50m; Max Range: ≥6km
Measuring Error ≤2m
Accuracy Rate ≥98%
Laser Wavelength 1.535μm, Safe band for human eyes
Interface (With external power supply interface)
Data Interface Standard USB Port
Video Interface Standard PAL
Communication Interface Standard RS232
Beidou Positioning Accuracy
Horizontal Positioning ≤10m (CEP)
Elevation Positioning ≤10m (PE)
Positioning Accuracy
Magnetic Azimuth Accuracy ≤0.5° (RMS, Inclination Range -15°~+15°)
Target Positioning Accuracy ≤20m (CEP) When the observation distance is 2km
Power Supply
Continuous Working Time ≥10h (Room Temperature)
Physical Characteristics
Net Weight ≤1.6kg
Gross Weight ≤2.3kg
Environmental Adaptability
Working Temperature -40 °C ~+55°C
Storage Temperature -55 °C ~+70°C



FAQs



1.What is the difference between low light, active IR and thermal imaging?

Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier;
Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment;
Thermal imaging doesn’t need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.



2. Can you block thermal imaging?
In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don’t want to be detected, you can conceal behind glass or walls to block the thermal imaging.
