Lightweight 640x512 Uncooled Thermal Imaging Binoculars For Night Vision

Place of Origin WUHAN
Brand Name GST
Model Number IR516C
Minimum Order Quantity 1 Piece
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Type Uncooled Thermal Binocular
High Light

Lightweight Uncooled Thermal Imaging Binoculars


640x512 Uncooled Thermal Imaging Binoculars


Uncooled Night Vision Thermal Binoculars

Leave a Message
Product Description
Thermal Binocular

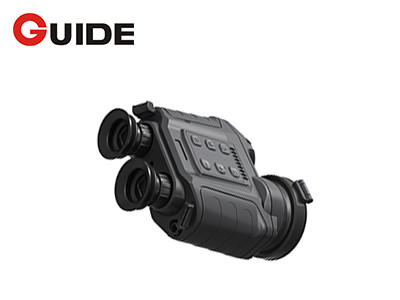

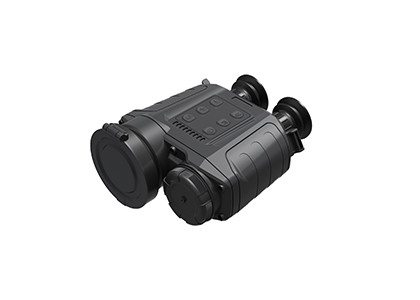

Light Weight 640x512 Uncooled Thermal Imaging Binoculars for Night Vision


Product Description


The IR516C portable uncoooled thermal binocular integrates the 640x512 uncooled VOx FPA microbolometer with spectral range of 8~14μm and ensures very stable performance. Its binocular design reduces eye fatigue during longer viewing and enhances the natural look of objects.


Combined with the 640x512/12µm highly-sensitive thermal imaging sensor, this thermal imaging binocular provides exceptional detection capabilities. The smallest temperature differences will be clearly visible and hidden targets can be detected in very poor light conditions or total darkness, especially in harsh weather with wind, fog, rain and snow.


Global Sensor Technology is committed to opening a new vision for the infrared thermal imaging industrial. We specialize in the design, manufacture, sales and marketing of thermal imaging detectors and infrared modules to provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.


Main Features


- Realize detection, identification and recognition of targets with thermal imaging technology
- Built-in photo, video recorder and replay functions
- Output photo and video via USB interface
- Support infrared electric focusing, pseudo color, 2х/4x magnification and cursor control
- Support adjustment of infrared contrast, brightness, auto compensation and display control of heat trace




Model IR516C
Infrared Camera
Detector Uncooled VOx FPA Microbolometer
Resolution 640x512
Pixel Pitch 12μm
Spectral Range 8-14μm
Infrared Optics
Focal Length 61mm
FOV 7.32°X5.86°
F# 0.8
Memory 32G
Pic Format JPG
Video Format AVI
Color OLED High Resolution OLED
Ocular Monocular
Power Supply
Input Voltage DC12V±0.5V
Battery 18650/2 pcs
Continuous Working Time >4hs (Room Temp.)
Physical Characteristics
Weight ≤1.5kg
Dimension ≤215x170x100mm
Mount Type 1/4" Socket
Environmental Adaptability
Working Temperature -40 ℃-+55℃
Storage Temperature -40℃-+60℃
Standard Battery
Portable Bag
Safety Box
External Cable
External Display Terminal
Power Adaptor
Portable Bag


About Global Sensor Technology


Lightweight 640x512 Uncooled Thermal Imaging Binoculars For Night Vision 0

Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

Global Sensor Technology is located at Optics Valley, China. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room settled for its three 8 inch fabrication lines. Thanks to the innovative and experienced staff, advanced fabrication facilities, and cutting-edge technique level, all key fabrication processes such as element purification, epitaxy growth, chip tape-out and fabrication, vacuum packaging can be done in house. The company successfully launched state-of-the-art VOx uncooled detectors, MCT and T2SL cooled detectors with full intellectual property. The product portfolio covers many different array formats, various pixel size and multiple spectral band combination, all products with high thermal sensitivity and reliability.

GST IR detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of GST enables it to meet the growing demand from all existing and emerging markets.
