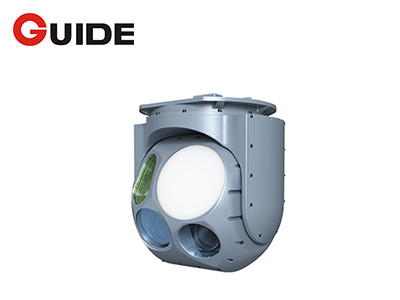

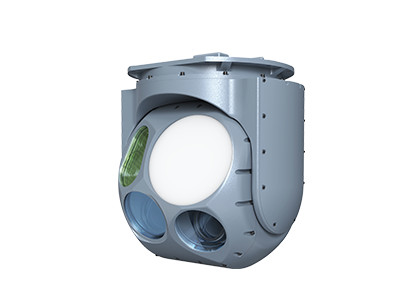

Airborne 4 Axis Multi Band EO IR Reconnaissance Pod

  • Airborne 4 Axis Multi Band EO IR Reconnaissance Pod
  • Airborne 4 Axis Multi Band EO IR Reconnaissance Pod
Place of Origin WUHAN
Brand Name GST
Model Number GDES-450H55
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Infrared Detector Cooled MWIR FPA 1280×1024/12μm Infrared Zoom Lens 15~600mm, Continuous Zoom
Visual Camera 1920×1080 Resolution Focal Length 10~600mm, Continuous Zoom
High Light

4 Axis Reconnaissance Pod

,

Airborne Reconnaissance Pod

,

Airborne Multi Band EO IR Systems
Leave a Message
Product Description
Brief Introduction



GDES-450H55 Airborne 4-axis Multi-band Reconnaissance Pod



Product Description



The GDES-450H55 airborne 4-axis multi-band reconnaissance has the capability to capture images with complementary advantages of different wavebands by integrating visible light and infrared cameras.



Based on an extensive experience in advanced electro optics and infrared systems (EO/IR), the GDES-450H55 EO/IR gimbal payload integrates a continuous zooming full HD visual camera and cooled infrared camera with 1280×1024/12μm focal plane array detector. It includes 4-axis gyro stability system, and has functions of image stabilizing, target searching, tracking and locating.



It can be widely used in applications such as investigation, monitoring, forest fire prevention, power line inspection, frontier anti-terrorism, oil and gas pipeline inspection, intelligent transportation, disaster rescue etc.



Main Features



- High stability accuracy up to 0.03mrad
- Core infrared detector with self-developed intellectual property right
- Support real-time output of thermal image and visible image
- With inertial image stabilization, locking, scanning functions
- With airborne information for target positioning function



Specifications



Model GDES-450H55
Infrared Camera
Detector Cooled MWIR Focal Plane Array
Resolution 1280×1024
Pixel Pitch 12μm
FOV 0.92°×0.73°~35.49×28.72°
Zoom Lens 15~600mm, Continuous Zoom
Visual Camera
Resolution 1920×1080
Focal Length 10~600mm, Continuous Zoom
FOV 1.01°×0.57°~38.78°×22.4°
Laser
Wavelength 1.064μm
Maximum Range ≥20km
Irradiation Distance ≥12km
LRF Accuracy ±5m
Illumination Distance ≥500m
Servo System
Motion Range 360° Continuous Azimuth, -110~+20° Elevation
Stabilization Accuracy ≤0.02mrad(RMS)
Electrical Interface
Working Voltage DC28V (Support 18-36V Input)
Video Port Ethernet
Physical Characteristics
Weight ≤55kg
Dimension ≤450mmx580mm (OD×H)
