Compact Airborne Multi Sensors EO IR Systems With Spherical Stabilization Platform

I'm Online Chat Now

Compact Airborne Multi Sensors EO IR Systems With Spherical Stabilization Platform

Compact Airborne Multi Sensors EO IR Systems With Spherical Stabilization Platform
Compact Airborne Multi Sensors EO IR Systems With Spherical Stabilization Platform

Large Image :  Compact Airborne Multi Sensors EO IR Systems With Spherical Stabilization Platform

Product Details:
Place of Origin: WUHAN
Brand Name: GST
Model Number: GDES-130E01A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Payment Terms: L/C, T/T
Detailed Product Description
Infrared Camera Resolution: 800x600 Visual Camera Resolution: 1920x1080
Laser Wavelength: 1.54μm (Safe For Human Eyes) Weight: ≤1KG
High Light:

Compact Multi Sensors EO IR Systems

,

Airborne EO IR Systems

,

Airborne Electro Optical Sensor System

Brief Introduction



GDES-130E01A Compact Airborne Multi Sensors Pod



Product Description

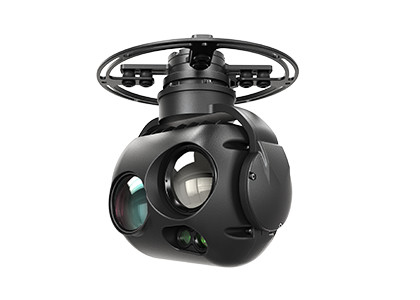

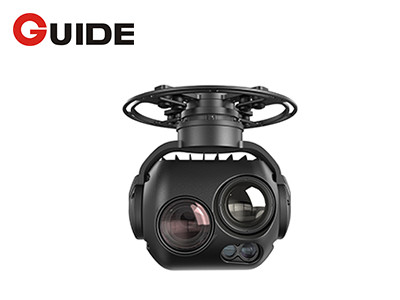

The GDES-130E01A compact airborne multi sensors pod employs a diameter of 150mm spherical stabilization platform, 1080P HD colorful visual camera, 800×600 uncooled infrared camera and laser rangefinder. It weights 1Kg and is suitable for small drone payloads. The pod could carry out missions like: search, surveillance, take and record target pictures/videos.



Main Features



- High stability accuracy up to 0.2mrad
- Core infrared detector with self-developed intellectual property right
- Support real-time output of thermal image and visible image
- With inertial image stabilization, locking, scanning functions
- With airborne information for target positioning



Specifications



Model GDES-130E01A
Infrared Camera
Detector Type Uncooled FPA Microbolometer
Resolution 800x600
Pixel Pitch 12μm
Horizontal FOV ≥12°×9°
Visual Camera
Resolution 1920×1080
Focal Length 30X Continuous Zoom
FOV 2.3°×60°
Laser
Wavelength 1.54μm (Safe for Human Eyes)
Maximum Range ≥2KM
LRF Accuracy ±2m
Servo System
Motion Range 360° Continuous Azimuth, -110 ~+10° Elevation
Stabilization Accuracy ≤0.2mrad (RMS)
Angle Measurement Accuracy ≤10mrad
Maximum Angular Velocity ≥60°/s
Electrical Interface
Power Consumption ≤50W (Average)
Video Interface Ethernet
Physical Characteristics
Weight ≤1KG
Dimension ≤150mm×180mm (OD×H)
