6KM Airborne 2 Axis Multi Sensors IR Electro Optics Systems

I'm Online Chat Now

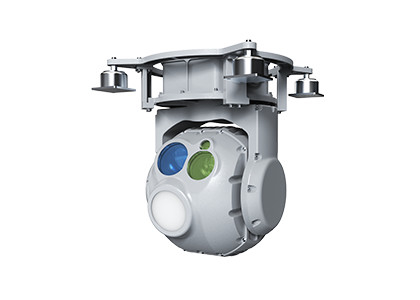

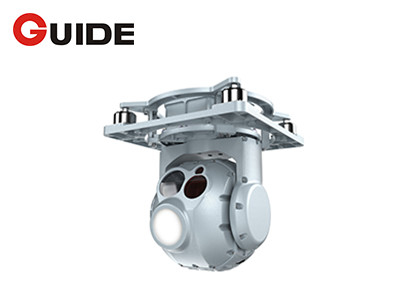

6KM Airborne 2 Axis Multi Sensors IR Electro Optics Systems

6KM Airborne 2 Axis Multi Sensors IR Electro Optics Systems
6KM Airborne 2 Axis Multi Sensors IR Electro Optics Systems

Large Image :  6KM Airborne 2 Axis Multi Sensors IR Electro Optics Systems

Product Details:
Place of Origin: WUHAN
Brand Name: GST
Model Number: GDES-200D05
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Payment Terms: L/C, T/T
Detailed Product Description
Infrared Camera Resolution: 640x512 Visual Camera Resolution: 1920x1080
Laser Wavelength: 1.54μm (Safe For Human Eyes) Weight: ≤5.5KG
High Light:

Airborne Electro Optics Systems

,

6KM Electro Optics Systems

,

Airborne 2 Axis EO IR Systems

Brief Introduction



GDES-200D05 Airborne 2-axis Multi Sensors Observation Pod



Product Description



The GDES-200D05 airborne 2-axis multi sensors observation pod integrates high precision gyro stabilized platform, cooled MWIR infrared camera, high-definition visual camera and laser rangefinder.


It is mainly designed for small helicopter, medium-sized rotor unmanned aerial vehicle (UAV) and can realize target detection, recognition and precise positioning through the high performance image sensor technology and high-precision stability control technology. The pod can also cooperate with the airborne system to complete auxiliary navigation, reconnaissance and surveillance, target positioning, geographic guidance and other tasks.



Main Features



- High stability accuracy up to 0.05mrad
- Core infrared detector with self-developed intellectual property right
- Support real-time output of thermal image and visible image
- With inertial image stabilization, locking, scanning functions
- With airborne information for target positioning



Specifications



Model GDES-200D05
Infrared Camera
Detector Type Cooled MWIR Focal Plane Array
Resolution 640x512
Pixel Pitch 15μm
Horizontal FOV 2.29°×1.83°~22.62°×18.18°
Focal Length 24~240mm, Continuous Zoom
Visual Camera
Resolution 1920×1080
Focal Length 24~120mm/4.7~141mm Continuous Zoom
FOV 2.75°×1.55°~13.7°×7.72°/ 2.3°~60°
Laser
Wavelength 1.54μm (Safe for human eyes)
Maximum Range 6KM
LRF Accuracy ±2m
Servo System
Motion Range 360° Continuous Azimuth, -120 ~+10° Elevation
Stabilization Accuracy ≤0.05mrad (RMS)
Angle Measurement Accuracy ≤1mrad
Maximum Angular Velocity ≥60°/s
Electrical Interface
Working Voltage DC28V (Support 18~36V Input)
Power Consumption ≤100W (Average)
Video Interface Ethernet
Physical Characteristics
Weight ≤5.5KG
Dimension ≤200mm×300mm (OD×H)



About Global Sensor Technology



6KM Airborne 2 Axis Multi Sensors IR Electro Optics Systems 0



Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

Global Sensor Technology is located at Optics Valley, China. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room settled for its three 8 inch fabrication lines. Thanks to the innovative and experienced staff, advanced fabrication facilities, and cutting-edge technique level, all key fabrication processes such as element purification, epitaxy growth, chip tape-out and fabrication, vacuum packaging can be done in house. The company successfully launched state-of-the-art VOx uncooled detectors, MCT and T2SL cooled detectors with full intellectual property. The product portfolio covers many different array formats, various pixel size and multiple spectral band combination, all products with high thermal sensitivity and reliability.

GST IR detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of GST enables it to meet the growing demand from all existing and emerging markets.
