GDES-450H55 Airborne 4 Axis Multi Band Reconnaissance Pod

I'm Online Chat Now

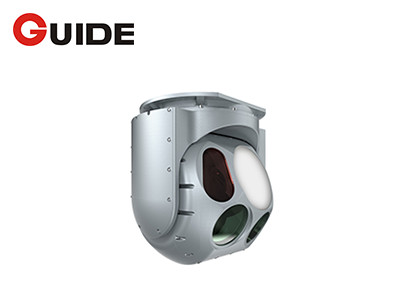

GDES-450H55 Airborne 4 Axis Multi Band Reconnaissance Pod

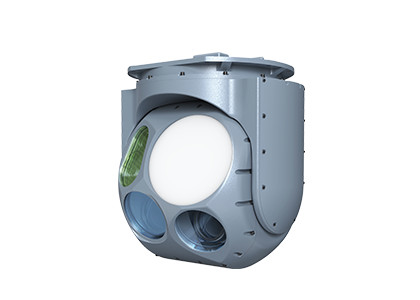

GDES-450H55 Airborne 4 Axis Multi Band Reconnaissance Pod

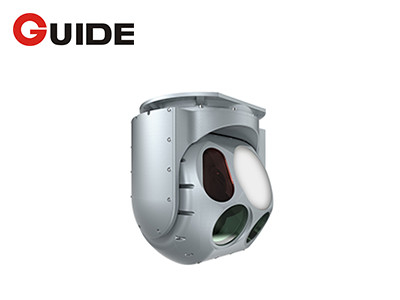

GDES-450H55 Airborne 4 Axis Multi Band Reconnaissance Pod

Large Image :  GDES-450H55 Airborne 4 Axis Multi Band Reconnaissance Pod

Product Details:
Place of Origin: WUHAN
Brand Name: GST
Model Number: GDES-450H55
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Infrared Camera: Cooled MWIR FPA 1280×1024/12μm Infrared Zoom Lens: 15~600mm, Continuous Zoom
Visual Camera: 1920×1080 Resolution Focal Length: 10~600mm, Continuous Zoom
High Light:

Airborne Multi Band Reconnaissance Pod

,

Four Axis Reconnaissance Pod

,

4 Axis Multi Band Reconnaissance

Brief Introduction



GDES-450H55 Airborne 4-axis Multi-band Reconnaissance Pod



Product Description



The GDES-450H55 airborne 4-axis multi-band reconnaissance has the capability to capture images with complementary advantages of different wavebands by integrating visible light and infrared cameras. Based on an extensive experience in advanced electro optics and infrared systems (EO/IR), the GDES-450H55 pod is equipped with 1080P visible light camera, large array 1280 cooled thermal camera, laser rangefinder and other optical devices (laser indication, laser illumination etc.).



Automatic and suspected target warning, target location, multi-target memory functions can be used to provide target information for the aircraft fire control system. Its active vibration reduction technology ensures the high accuracy stability of the visual axis, and enables high-speed tracking of moving targets.



Main Features



- High stability accuracy up to 0.03mrad
- Core infrared detector with self-developed intellectual property right
- Support real-time output of thermal image and visible image
- With inertial image stabilization, locking, scanning functions
- With airborne information for target positioning function



Specifications



Model GDES-450H55
Infrared Camera
Detector Cooled MWIR Focal Plane Array
Resolution 1280×1024
Pixel Pitch 12μm
FOV 0.92°×0.73°~35.49×28.72°
Zoom Lens 15~600mm, Continuous Zoom
Visual Camera
Resolution 1920×1080
Focal Length 10~600mm, Continuous Zoom
FOV 1.01°×0.57°~38.78°×22.4°
Laser
Wavelength 1.064μm
Maximum Range ≥20km
Irradiation Distance ≥12km
LRF Accuracy ±5m
Illumination Distance ≥500m
Servo System
Motion Range 360° Continuous Azimuth, -110~+20° Elevation
Stabilization Accuracy ≤0.02mrad(RMS)
Electrical Interface
Working Voltage DC28V (Support 18-36V Input)
Video Port Ethernet
Physical Characteristics
Weight ≤55kg
Dimension ≤450mmx580mm (OD×H)
