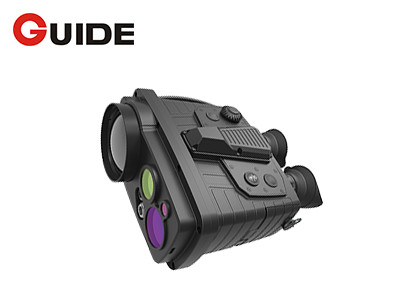

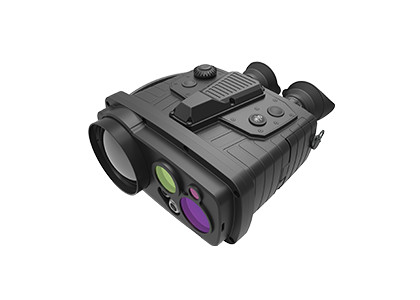

Continuous Optical Zoom Uncooled Thermal Imaging Binoculars

I'm Online Chat Now

Continuous Optical Zoom Uncooled Thermal Imaging Binoculars

Continuous Optical Zoom Uncooled Thermal Imaging Binoculars
Continuous Optical Zoom Uncooled Thermal Imaging Binoculars

Large Image :  Continuous Optical Zoom Uncooled Thermal Imaging Binoculars

Product Details:
Place of Origin: WUHAN
Brand Name: GST
Model Number: IR522-WM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Payment Terms: L/C, T/T
Detailed Product Description
Type: Uncooled Thermal Binocular
High Light:

Cooled Thermal Imaging Binoculars

,

Continuous Optical Zoom Thermal Imaging Binoculars

,

Continuous Optical Zoom Heat Detecting Binoculars

Brief Introduction



IR522-WM Handheld Uncooled Thermal Binocular



Product Description



IR522-WM is a multi-functional handheld uncooled thermal binocular with continuous optical zoom. Combined with dual sensors, the IR522-WM thermal imaging binocular could output clear thermal imaging with 640x512 resolution in total darkness or even in harsh environments with poor light condition. It also integrates the visual camera that offers field of view more than 3°x2.2°.



This binocular is able to locate target in daylight and at night and has a high performance laser rangefinder that ensures accurate location of target. It is dedicated to long range target location and surveillance.



Main Features



- With high accuracy, repeat frequency, stable laser rangefinder
- Support self and target positioning function that has fast operation, strong signal and high accuracy
- With target recognition and mark functions



Specifications



Model IR522-WM
Infrared Camera
Detector Type Uncooled VOx FPA Microbolometer
Resolution 640×512
Pixel Pitch 12μm
FOV ≥6.1°×5.0°
Visual Camera
Field of View ≥3°x2.2°
Fog Penetration Yes. When visibility ≤4km, fog penetration ratio ≥1.5
Laser Rangefinder
LRF Range Min Range≤50m; Max Range: ≥6km
Measuring Error ≤2m
Accuracy Rate ≥98%
Laser Wavelength 1.535μm, Safe band for human eyes
Interface (With external power supply interface)
Data Interface Standard USB Port
Video Interface Standard PAL
Communication Interface Standard RS232
Beidou Positioning Accuracy
Horizontal Positioning ≤10m (CEP)
Elevation Positioning ≤10m (PE)
Positioning Accuracy
Magnetic Azimuth Accuracy ≤0.5° (RMS, Inclination Range -15°~+15°)
Target Positioning Accuracy ≤20m (CEP) When the observation distance is 2km
Power Supply
Continuous Working Time ≥10h (Room Temperature)
Physical Characteristics
Net Weight ≤1.6kg
Gross Weight ≤2.3kg
Environmental Adaptability
Working Temperature -40 °C ~+55°C
Storage Temperature -55 °C ~+70°C



FAQs



1. What is the advantage of thermal imaging binoculars?

Compared with the nigth vision devices, thermal imaging binoculars are effective even in total darkness or harsh environments such as heavy snow, haze, rain etc. It captures the thermal radiation of the target and converts it into a visible infrared image to monitor the target. Its portable and handheld characteristics make it widely used in target monitoring.



About Global Sensor Technology



Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

Global Sensor Technology is located at Optics Valley, China. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room settled for its three 8 inch fabrication lines. Thanks to the innovative and experienced staff, advanced fabrication facilities, and cutting-edge technique level, all key fabrication processes such as element purification, epitaxy growth, chip tape-out and fabrication, vacuum packaging can be done in house. The company successfully launched state-of-the-art VOx uncooled detectors, MCT and T2SL cooled detectors with full intellectual property. The product portfolio covers many different array formats, various pixel size and multiple spectral band combination, all products with high thermal sensitivity and reliability.

GST IR detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of GST enables it to meet the growing demand from all existing and emerging markets
