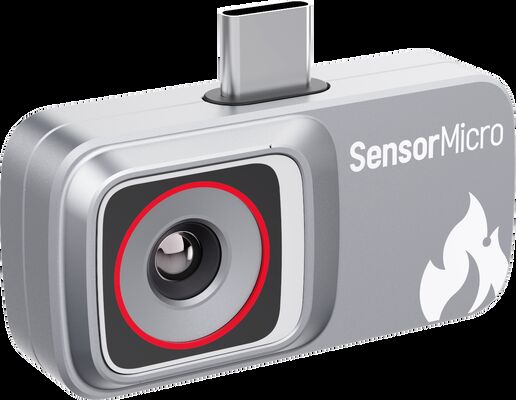

Cost-effective Uncooled LWIR 256×192/12μm Thermal Camera Module for Mobile Terminal

  • Cost-effective Uncooled LWIR 256×192/12μm Thermal Camera Module for Mobile Terminal
Place of Origin WUHAN
Brand Name SensorMicro
Certification CE, FCC, RoHS
Model Number iMC212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Portable Thermal Camera Storage Temperature -45℃~+85℃
Temperature Measurement Accuracy Greater Of ±2℃ / ±2% Typical Power Consumption 300mW
Lens(HFOV/FL) 56°/ 3.2mm Focus Mode Focus Free
Highlight

Thermal Camera Module for Mobile Terminal

,

Uncooled LWIR 12μm Thermal Camera Module
Leave a Message
Product Description
Cost-effective Uncooled LWIR 256*192/12μm Thermal Camera Module for Mobile Terminal Applications
The iMC212 infrared miniature module is built on the self-developed TIMO212 module, specifically designed for mobile terminal applications. Integrated with an infrared ISP processing board and structural components, it supports direct output of thermal images and temperature matrices without requiring temperature calibration, significantly reducing development effort.
Key Advantages
Portable and Cost-Effective
  • Equipped with self-developed 256*192/12μm wafer-level infrared detector for significant cost advantages
  • Ultra-compact design ideal for mobile and portable devices
Robust Structure, Reliable Performance
  • Paired with ISP Processing Board and intelligent image algorithm for direct thermal image and temperature matrix output
  • Encased in structural components for enhanced reliability and completeness
Mainstream Interfaces, Easy Development
  • Provides standard USB 2.0 digital video output interface for wide compatibility
  • Factory-calibrated temperature data eliminates additional development requirements
Technical Specifications
Model iMC212
Resolution 256*192
Pixel Size 12μm
Spectral Response 8~14μm
NETD ≤50mK
Output Data 14bit Raw
Frame Rate 25Hz
Focus Mode Focus Free
Lens (HFOV/FL) 56°/ 3.2mm
Digital Video Interface USB2.0
Operating Voltage 3.3V±0.1V
Typical Power Consumption 300mW
Temperature Measurement Range -20℃~+550℃(-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃～-60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification CE, FCC, RoHS
About SensorMicro
SensorMicro is a world-leading infrared detector manufacturer and service provider, delivering high-performance uncooled and cooled thermal imaging detectors to customers worldwide. We share professional application experience and provide advanced infrared detectors, camera cores, and modules with versatile formats and wavebands.
Our products are designed for clarity, sensitivity, and efficiency, integrating seamlessly into diverse systems to empower next-generation imaging and sensing applications across industries. SensorMicro detectors are widely used in thermography, security & surveillance, personal vision, automotive, and consumer infrared products.
Frequently Asked Questions
What are the key features of plug-in thermal cameras?
Compact & Portable: Typically lightweight (10-50g) and pocket-sized, ideal for on-the-go use without carrying bulky equipment.
Interface Compatibility: Supports universal connections (USB-C for consumer devices; MIPI/HDMI for industrial equipment) to work with multiple host platforms.
Thermal Sensing Core: Integrates microbolometer or cooled infrared detectors, capturing long-wave infrared radiation (8-14 μm) and converting it into thermal images.
Cost-Effective: Eliminates the need for independent displays/batteries, making thermal imaging accessible.
App-Driven Functionality: Relies on dedicated mobile/desktop apps to adjust parameters, capture photos/videos, and analyze thermal data.
