Airborne Payload EO IR Sensors Infrared Camera Gimbal System

Place of Origin WUHAN
Brand Name GST
Model Number GDES-300F20
Minimum Order Quantity 1 Piece
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Electro-Optical System Infrared Camera Resolution 640x512
Used For UAV Payload Visual Camera Resolution 1920x1080
Laser Wavelength 1.064μm Power Consumption ≤200W (Average)
High Light

Airborne Payload EO IR Sensors

,

EO IR Sensors Camera Gimbal System

,

640x512 EO IR Systems

Leave a Message
Product Description

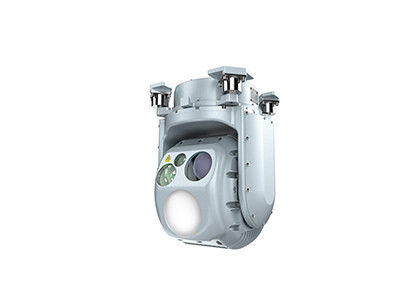

Airborne Payload EO/IR Sensors Infrared Camera Gimbal System



Product Description



The GDES-300F20 airborne 2-axis multi sensors observation pod adopts a spherical stable platform with a diameter of 280mm. It is equipped with a 1080P low-illuminance visual camera, a cooled infrared camera and a laser rangefinder.



The electro-optical payload is integrated with the cooled MWIR focal plane array 640x512/15μm infrared sensor, making it perfect for detecting heat sources, law enforcement, search and rescue, day and night surveillance etc.


The pod weighs less than 20KG and is suitable for small and medium-sized UAVs to search and observe targets. It has the functions of target positioning and geographic guidance based on the aircraft information.



Main Features



- Ideal for manned or unmanned aircraft
- Low weight less than 20kg
- Cooled MWIR focal plane array 640x512/15μm
- 2-axis multi sensors

- Eyesafe Laser Rangefinder



Specifications



Model GDES-300F20
Infrared Camera
Detector Type Cooled MWIR Focal Plane Array
Resolution 640×512
Pixel Pitch 15μm
Horizontal FOV 1.83°×1.5°~35.5°×28.7°
Zoom Lens 15~300mm, Continuous Zoom
Visual Camera
Resolution 1920×1080
Focal Length 10~300mm Continuous Zoom
FOV 1.1°×0.6° ~ 32.1°×18.4°
Laser
Wavelength 1.064μm (Safe for Human Eyes)
Maximum Range ≥12KM
Irradiation Distance ≥6KM
LRF Accuracy ±5m
Servo System
Moving Range 360° Continuous Azimuth, -120 ~+10° Elevation
Stabilization Accuracy ≤ 0.03mrad (RMS)
Angle Measurement Accuracy ≤ 1mrad
Maximum Angular Velocity ≥60°/s
Electrical Interface
Working Voltage DC28V (18~36V Input Accepted)
Power Consumption ≤200W (Average)
Video Interface Ethernet Interface
Physical Characteristics
Weight ≤20kg
Size ≤300mm×380mm (OD×H)
