Product Description

VOCs Gas Leak Detection Cooled MWIR Thermal Imaging Detector 320x256 30μM



Product Description

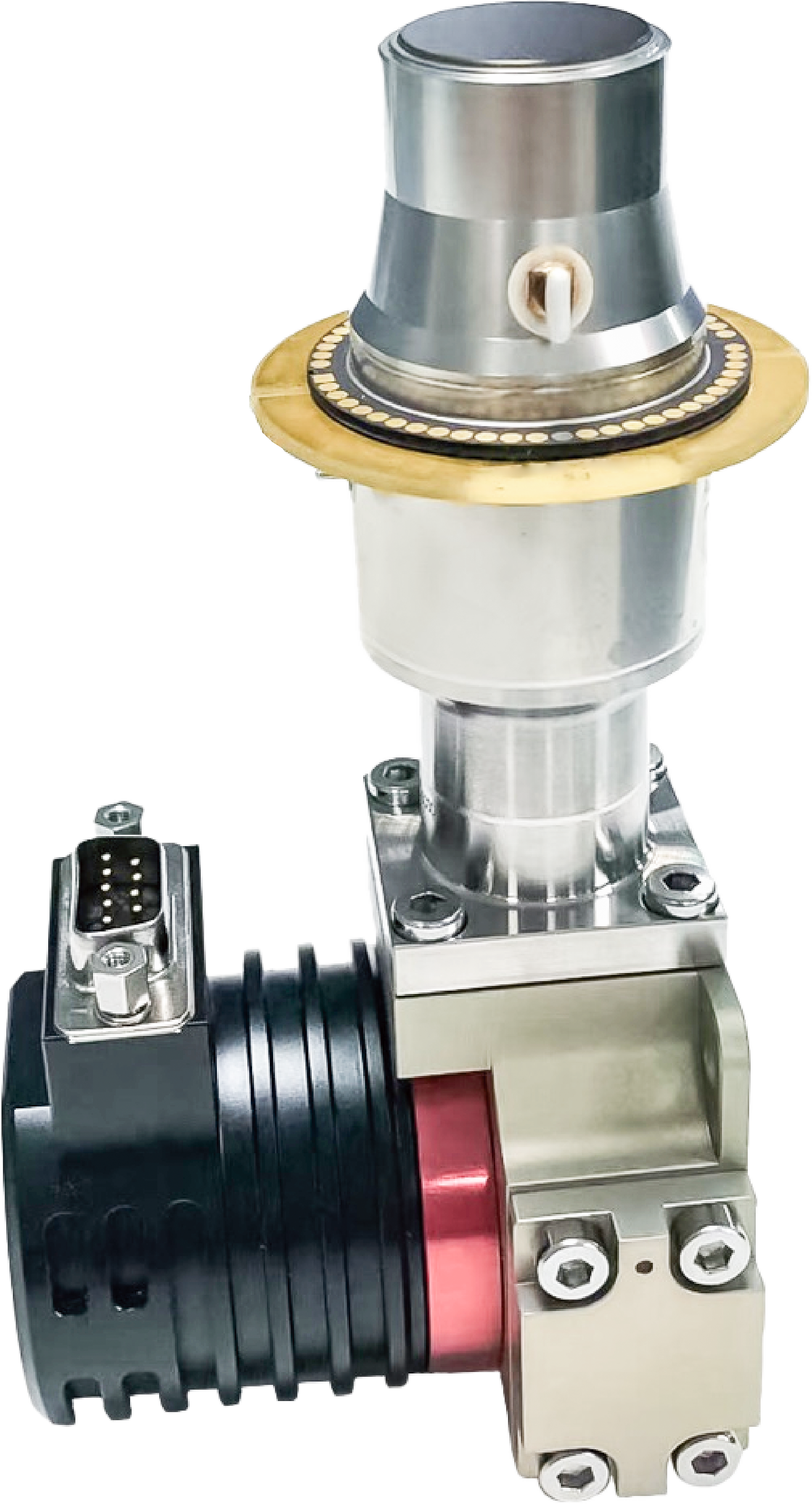

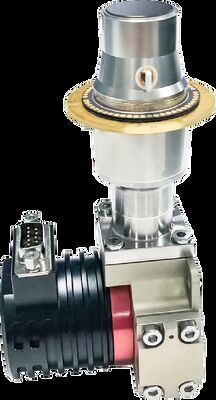

C330M-G cooled infrared detector is specially developed for VOCs gas leak detection with the function of converting infrared radiation of target with 3.2~3.5μm wavelength into electrical signal. Its external mechanical interface, optical interface and electronic interface are commonly used and can be expanded. C330M-G can be widely used in atmospheric environment monitoring and gas leakage detection, pollutant discharge, chemical gas detection in petrochemical plants and refineries.



Main Features



Optical Gas Imaging
• Long range non-contact detection
• High efficient, secure and wide range of gas leak detection

High Sensitivity
• High sensitive cooled infrared detector, quite efficient in application of low gas concentration and slow gas flow
• Effective leak detection includes Alkanes, Alkenes, Alcohols, Benzenes, Ketones and other gases

Designed for Requirements of Users
• Support 12V power supply for explosion-proof certification
• Various cryocoolers available for light weight, low power, long life and high reliability
• Customizable spectral range: 3μm~5μm MWIR (for more gas detection types: CO, CO2 etc.)



Product Specifications



Model C330M-G
Sensitive Material HgCdTe/MCT
Resolution 320×256
Pixel Size 30μm
Spectral Range 3.2μm±0.1μm~3.5μm±0.1μm (Cusomizable Range: 3μm~5μm)
Working Mode Snapshot; ITR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 36Me-/12Me-
Dynamic Range ≥80dB
Number of Output 1 or 4; Up to 6.6MHz/per Output
Typical NETD 10mK (F1.5)
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cryocooler RS058 RS058I LS734
Cooler Type Integral Rotary Stirling Cooler Integral Rotary Stirling Cooler Linear Rotary Stirling Cooler
Stable Power Consumption ≤7W ≤7W ≤10W
Max. Power Consumption ≤15W ≤15W ≤45W
Power Supply 24V DC 12V DC 24V DC
Cooling Time ≤6min30s ≤7min ≤5min
Size (mm) 142x58.5x71 142×58.5×71 Compressor Φ46×122
Dewar Φ40×114
Weight ≤600g ≤600g ≤1.2kg
Working Temperature -45°C ~ +71°C



Industrial Applications



The C330M-G gas leak detection cooled MWIR thermal imaging detector is used for customers who have strong development ability. By integrating this cooled thermal sensor, the invisible VOCs (volatile organic compounds) can be detected and visualized so that further damage can be avoided. These gases includes such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.



Exhibitions



VOCs Gas Leak Detection Cooled MWIR Thermal Imaging Detector 320x256 30μM 0



FAQs



1. Advantages of Optical Gas Imaging

Time-saving & Efficient: support large-scale real-time detection, rapid leak location, no need for interrupting production.
Long Range Detection: away from dangerous and complex areas, non-contact non-destructive testing, without additional radiation source
Easy to Analyze: intuitive imaging, instant storage, convenient analysis
Multi-function Inspection: a variety of gases can be detected, with excellent remote temperature measurement function



2. Working Principle of Optical Gas Imaging

Optical gas imaging is a kind of infrared technology that could see invisible industrial gases.

After absorbing infrared radiation at specific wavelengths, infrared radiation difference will cause between the gas and the background.

The gas leak detection infrared detector with built-in narrowband filter only receives the infrared band near the gas infrared absorption peak, and can convert the gas into visible infrared images through the radiation difference between the gas and the background.
