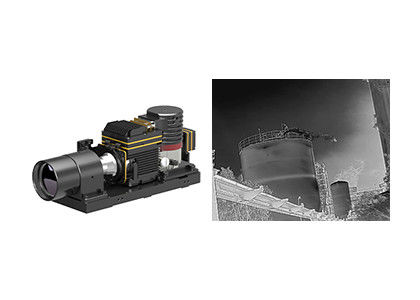

LFD330Z3 Cooled Infrared Detector with 320x256 Resolution 30μm Pixel Pitch and 10mK NETD for Gas Leakage Detection

LFD330Z3 infrared detector is specifically designed for detecting minute fugitive emissions of industrial gases. Featuring a customized 320x256 / 30µm cooled infrared detector, it operates in the spectral range of 3.2~3.5µm for VOC leak detection.

This real-time non-contact measurement system enables inspectors to detect gas leakage in dangerous or hard-to-access areas, ensuring personnel safety. It offers significant value in safety production, environmental protection supervision, and cost reduction.

• Resolution: 320x256
• Pixel Pitch: 30µm
• NETD 10mK, High Sensitivity
• Spectral Response: 3.2µm±0.1µm~3.5µm±0.1µm
• Meets requirements for portable handheld devices or 24/7 online monitoring
• Supports various interfaces and RAW/YUV image output

The LFD330Z3 gas leak detection infrared detector is used for visualizing invisible VOCs (volatile organic compounds) and detecting gas leakage including: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene, and more.

As a world-leading manufacturer and service provider of infrared detectors, SensorMicro boasts years of profound experience in infrared thermal imaging solutions. Guided by the core philosophy of "SensorMicro, Sense More" and driven by user needs, we are dedicated to unlocking the full potential of infrared technology, delivering high-performance products and professional services to customers worldwide.

MCT, also called HgCdTe, refers to Mercury-Cadmium-Telluride which is a chemical compound of cadmium telluride (CdTe) and mercury telluride (HgTe) and a common material in photodetectors. MCT/HgCdTe detector is a photoconductive detector that operates at a cryogenic environment and can detect infrared radiation. It is more sensitive than thermal sensors.

T2SL refers to Type-II Superlattice, which is an artificial material with alternating growth periodic heterojunction at nanometer size. It has high uniformity and superior optical properties, such as large electron effective mass, large absorption coefficient and high quantum efficiency. Compared with MCT infrared detector, the T2SL infrared detector has good material uniformity, low cost, and similar performance to MCT infrared detector in medium and long wave bands, but has great advantages in very long wave bands.
