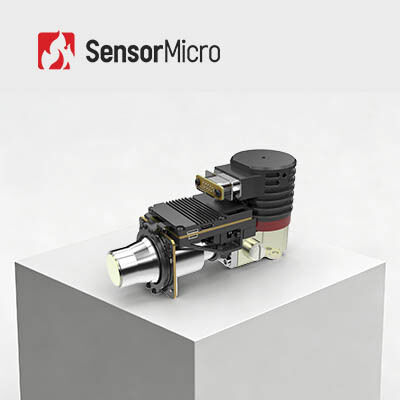

Cooled MWIR FPA Infrared Camera Core with 320x256 Resolution and 55mm Lens for Optical Gas Imaging

  • Cooled MWIR FPA Infrared Camera Core with 320x256 Resolution and 55mm Lens for Optical Gas Imaging
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification RoHS; Reach
Model Number LFM330Z6
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detector Type Cooled MWIR FPA Technology Infrared
Resolution 320x256 / 30μm Size 142mm×58.5mm×80mm
NETD 10mK (F1.5) Spectral Range 4.2±0.1μm～4.4±0.1μm
Highlight

Gas Imaging Camera 320x256

,

RoHS Gas Imaging Camera

,

30uM Optical Gas Imaging Camera
Leave a Message
Product Description

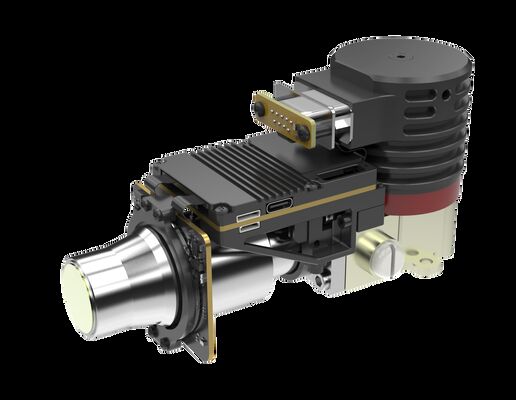

Cooled Optical Gas Imaging Infrared Camera Core 320x256/30μm with 55mm Lens
Driven by advancements in production methods, industrial gas production and usage have grown rapidly. While providing significant benefits to manufacturing facilities, the risk of gas leakage has also increased substantially. Optical Gas Imaging (OGI) is a widely used and highly effective method for detecting gas leaks in industrial environments.
The LFM330Z6 infrared gas leak detection camera core developed by SensorMicro is specifically designed for detecting minute fugitive emissions of industrial gases. Featuring a 320x256/30µm cooled infrared detector, it operates in the spectral range of 4.2±0.1μm～4.4±0.1µm for CO₂ gas leak detection.
SensorMicro brings years of experience in infrared thermal imaging solutions and numerous successful integration cases for gas leak detection applications. We are confident in providing you with comprehensive and satisfactory service.
Main Features
  • Resolution: 320x256
  • Pixel Pitch: 30µm
  • NETD 10mK (F1.5), High Sensitivity
  • Spectral Response: 4.2±0.1μm～4.4±0.1µm
  • Clear detection of leaks: high effective pixel rate, equipped with gas enhanced HSM algorithm
Product Specifications
Module model LFM330Z6
Resolution 320*256
Pixel size 30μm
Spectral response 4.2±0.1μm～4.4±0.1μm
Typical NETD 10mK (F1.5)
Frame rate 30Hz/60Hz
Digital video Standard: DVP/LVDS/USB2.0
Optional: Cameralink/USB3.0/GigE/SDI/MIPI/Single-mode fiber/Multi-mode fiber
Communication Standard: USB2.0/LV-TTL
Optional: RS422/CAN/USB3.0/GigE
Cooling time (23 ℃) ≤8min@12V
Stable power consumption (23 ℃) ≤10W
Size (mm) 142*58.5*80
Weight (g) ≤680
Working temperature -40℃～+71℃
Focal length 23mm/55mm
Industrial Applications
The LFM330Z6 gas leak detection thermal imaging detector provides reliable visualization of invisible CO₂ plumes even in harsh environments. Applications include: Carbon Capture, Utilization and Storage (CCUS), Enhanced Oil Recovery (EOR), Power Generation Industry, Food & Beverage Industry, Semiconductor & Electronics Manufacturing, Greenhouse Agriculture, Waste Treatment & Biogas Plants, and more.
Our Advantages
Cooled MWIR FPA Infrared Camera Core with 320x256 Resolution and 55mm Lens for Optical Gas Imaging 0
Frequently Asked Questions
Advantages of Optical Gas Imaging
  • Time-saving & Efficient: supports large-scale real-time detection, rapid leak location, no production interruption required
  • Long Range Detection: operates from safe distances in hazardous areas, non-contact non-destructive testing, no additional radiation source needed
  • Easy to Analyze: intuitive imaging, instant storage, convenient analysis
  • Multi-function Inspection: detects various gases with excellent remote temperature measurement capability
Working Principle of Optical Gas Imaging
Optical gas imaging is an infrared technology that visualizes invisible industrial gases. After absorbing infrared radiation at specific wavelengths, infrared radiation differences occur between the gas and the background. The gas leak detection infrared detector with built-in narrowband filter receives only the infrared band near the gas infrared absorption peak, converting gas into visible infrared images through radiation differences between the gas and background.
