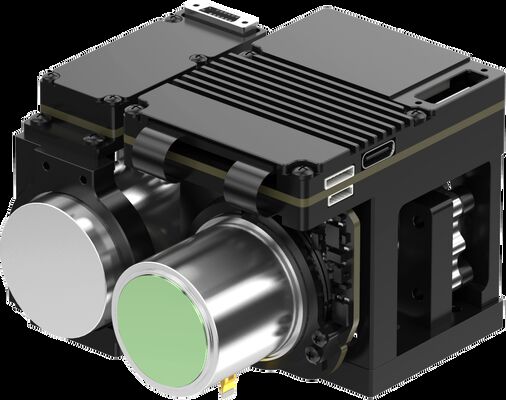

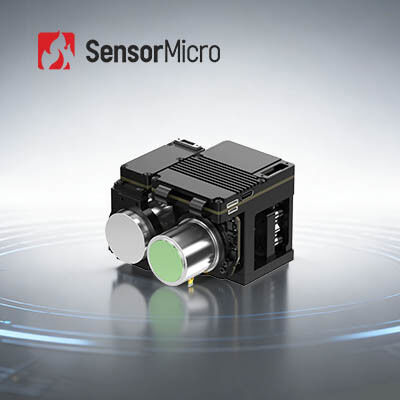

MWIR Cooled Infrared Camera Module with 640x512 and 25mK NETD for Non Contact Gas Leak Detection

  • MWIR Cooled Infrared Camera Module with 640x512 and 25mK NETD for Non Contact Gas Leak Detection
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification RoHS; Reach
Model Number LFM615HZ3
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size (mm) 71×72×52 Weight (g) ≤370
Resolution 640x512/15μm Spectral Range 3.2±0.1~3.5±0.1μm
NETD 25mK (F1.5) Frame Rate 30Hz
Highlight

MWIR Cooled Infrared Camera Module

,

Non Contact MWIR Infrared Camera

,

Gas Leakage Detection MWIR Infrared Camera
Leave a Message
Product Description
MWIR Cooled Infrared Camera Module for Non-Contact Gas Leakage Detection
Volatile organic compounds (VOCs), widely distributed in industries such as petrochemicals, are easily volatile, flammable, explosive, and toxic. Traditional detection methods generally have shortcomings such as short detection distance, limited search range, and difficulty in intuitive detection.
The LFM615HZ3 is a cooled infrared thermal imaging module specifically engineered for gas leakage detection. This advanced system enables automatic, accurate detection of numerous industrial gases within seconds, ensuring safety without requiring system shutdowns.
Key Features
  • Resolution: 640x512
  • Pixel pitch: 15µm
  • NETD: 25mK (F1.5), high sensitivity
  • Spectral response: 3.2µm±0.1µm~3.5µm±0.1µm
  • Easy integration: supports various interfaces and RAW/YUV image output
Technical Specifications
Module model LFM615HZ3
Resolution 640×512
Pixel size 15μm
Spectral response 3.2±0.1μm～3.5±0.1μm
Typical NETD 25mK (F1.5)
Frame rate 30Hz
Digital video USB3.0/GigE/MIPI
Communication USB3.0/GigE/RS422
Cooling time (23℃) ≤5min@12V
Stable power consumption (23℃) ≤8.5W
Size (mm) 71×72×52
Weight (g) ≤370
Working temperature -40℃～+71℃
Focal length 23mm/55mm/25-75mm
Industrial Applications
The LFM615HZ3 gas leak detection thermal imaging camera visualizes invisible VOCs (volatile organic compounds) and detects gas leakage including: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene, and more.
Core Technology
Strong R&D Capabilities: SensorMicro is one of China's earliest companies researching antimonide-based Type-II superlattice (T2SL) cooled infrared detectors, pioneering domestic mass production and engineering applications.
Leading Technological Achievements: Leads SWaP³ technology development with advantages in large-format arrays, small pixels, high-temperature operation, miniaturization, and performance.
Complete Supply Chain: Integrated technology from chip design to cooler manufacturing and vacuum packaging ensures stable supply, reliable quality, and cost advantages.
Frequently Asked Questions
Advantages of Optical Gas Imaging
  • Time-saving & Efficient: Supports large-scale real-time detection with rapid leak location
  • Long Range Detection: Non-contact testing from safe distances without additional radiation sources
  • Easy to Analyze: Intuitive imaging with instant storage and convenient analysis
  • Multi-function Inspection: Detects multiple gases with excellent remote temperature measurement
Working Principle of Optical Gas Imaging
Optical gas imaging utilizes infrared technology to visualize invisible industrial gases. Gas absorption at specific wavelengths creates infrared radiation differences between the gas and background. The detector's narrowband filter receives infrared bands near gas absorption peaks, converting radiation differences into visible infrared images.
