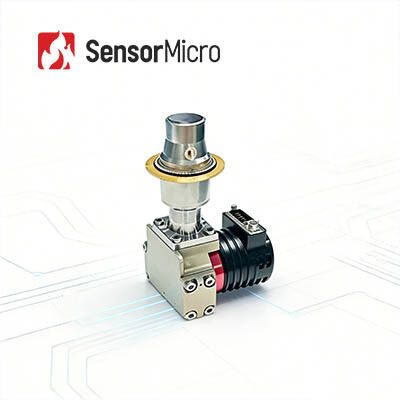

320x256/30µm High Sensitivity Cooled Infrared Detector for VOCs Gas Leak Detection in Petrochemical Industry

  • 320x256/30µm High Sensitivity Cooled Infrared Detector for VOCs Gas Leak Detection in Petrochemical Industry
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification RoHS; Reach
Model Number LFD330Z3
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Style Cooled Infrared Detector Resolution 320x256/30μm
NETD 10mK (F1.5) Spectral Range 3.2±0.1~3.5±0.1μm
Cryocoolers RS058I; LS713; LS734 Application VOCs Gas Leak Detection
Highlight

High Sensitivity OGI Infrared Camera

,

Petrochemical Industry Infrared Camera

,

Petrochemical Industry OGI Infrared Camera
Leave a Message
Product Description
320x256/30µm High Sensitivity Optical Gas Imaging Cooled Infrared Detector
The LFD330Z3 is a cooled infrared detector specifically designed for gas leakage detection in the petrochemical industry. It integrates a 320x256/30µm MCT cooled MWIR infrared detector to visualize invisible Volatile Organic Compounds (VOCs) that cannot be detected by the naked eye.
Gas leakage, particularly harmful Volatile Organic Compounds, presents serious safety concerns in industrial production. Escaped gases can cause explosions and result in significant personnel and property losses, making reliable gas detection systems essential for operational safety.
Main Features
  • High reliability for continuous operation
  • Clear visualization of minor leaks with enhanced HSM algorithm support
  • Multi-scenario application compatibility for portable handheld devices and 24/7 online monitoring
  • Easy integration with various interfaces and RAW/YUV image output
Product Specifications
Detector model LFD330Z3
Resolution 320*256
Pixel Size 30μm
Spectral Response 3.2±0.1μm～3.5±0.1μm
Typical NETD 10mK (F1.5)
Cryocooler Options RS058I | LS713 | LS734
Cooling time (23℃) ≤7min@12V | ≤5min@12V
Power consumption (23℃) ≤13W (Peak) ≤7W (Stable) | ≤18W (Peak) ≤7W (Stable) | ≤35W (Peak) ≤15W (Stable)
Size (mm) 142*58.5*71 | Compressor φ33.5*68 Dewar φ41*86 | Compressor φ46*122 Dewar φ46.5*112
Weight (g) ≤600 | ≤350 | ≤1200
Working temperature -45℃～+71℃
Storage temperature -55℃～+71℃
MTTF ≥10000h | ≥30000h
Industrial Applications
The LFD330Z3 gas leak detection thermal imaging detector visualizes invisible VOCs and detects gas leakage including: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene, and other volatile organic compounds.
Frequently Asked Questions
What is a cryocooler used for?
Cryocoolers maintain sensors at extremely low temperatures to enable thermal imaging during long-term missions. Many high-end applications require these low temperatures for optimal image capture performance.
What are the main factors to measure the quality of a Cryocooler?
Long battery life and reliable operation are the primary quality indicators. GSTiR cryocoolers feature a wide operating temperature range and excellent reliability, with MTTF (Mean Time to Failures) reaching 10,000 hours to meet 24/7 operational requirements.
What is MTTF?
MTTF (Mean Time to Failure) measures component reliability by indicating the average lifespan before replacement. This metric provides insight into part quality and long-term value, with longer lifespans delivering greater operational value.
