640x512 / 12μM FPA Uncooled Infrared Detector Thermal Imaging

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number GST612C
Minimum Order Quantity 100 Pieces
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 640x512 / 12μm NETD <40mK
Spectral Range 8~14μm Size 18.5×18.5×3.8 (Without Pin Size)
High Light

12uM FPA Uncooled Infrared Detector

,

Thermal Imaging Uncooled Infrared Detector

,

640x512 Infrared Thermal Detector

Leave a Message
Product Description

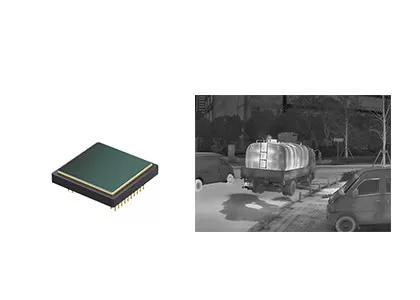

GST612C Uncooled Infrared Detector



640x512 / 12μm Uncooled FPA Thermal Imaging Detector with Ceramic Package



Product Description



GST612C is a ceramic packaging VOx uncooled infrared detector that is light, tiny and has low thermal noise and fast response. Its resolution is 640x512 and pixel size at 12μm with its optimized microbolometer structure of best sensitivity for long wavelength between 8 and 14 µm.



Ceramic packaging process is similar to metal packaging, which is a mature infrared detector packaging technology. Compared with metal packaging, the volume and weight of the packaged detector will be greatly reduced. Thus, the GST612C infrared detector could be applied to industries that have strict requirements on size, weight and power consumption.



Global Sensor Technology is a supplier of infrared detectors sensors and OEM thermal camera cores. We have more than 10 years of experience in the infrared thermal imaging industries. We have professional after-sales service team to provide customers with professional reply.



Main Features



- High thermal sensitivity, NETD<40mK

- Frame rate up to 50Hz;
- Mini size as low as 18.5mm×18.5mm×3.8mm
- Light weight, less than 4.5g
- Low power consumption: 120mW



Product Specifications



Model GST612C
Sensitive Material Vanadium Oxide
Resolution 640×512
Pixel Size 12μm
Spectral Range 8-14μm
Typical NETD <40mK
Digital Output Built-in 14 bit ADC
Thermal Response Time <12ms
Max Frame Rate 50Hz
Power Consumption ≤120mW
Dimension (mm) 18.5×18.5×3.8 (Without Pin Size)
Weight <4.5g
Operating Temperature -40°C ~ +85°C



Industrial Applications



The GST612C thermal imaging detector is widely used in many areas, such as ADAS, Security Monitoring, Handheld Device, Helmet-mounted Device, UAV Payloads, Machine Vision, Thermography, Power Maintenance, Metallurgy Petrochemical, Epidemic Prevention, Scientific Research etc.



Hornors & Certificates



640x512 / 12μM FPA Uncooled Infrared Detector Thermal Imaging 0



FAQs



1. What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.



2. What can infrared imaging be used for?

-Night vision

-Search & rescue

-Non-destructive test

-Epidemic prevention

-Thermography

-Security & monitoring

-Firefighting



3. What is thermal imaging module?

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
