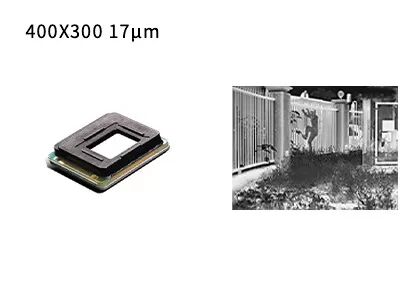

FPA Uncooled Infrared Detectors 400x300 Uncooled Vox Microbolometer

FPA Uncooled Infrared Detectors 400x300 Uncooled Vox Microbolometer
FPA Uncooled Infrared Detectors 400x300 Uncooled Vox Microbolometer

Large Image :  FPA Uncooled Infrared Detectors 400x300 Uncooled Vox Microbolometer

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GST417W
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Pieces
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Type: Microbolometer Material: Vanadium Oxide
Resolution: 400x300 Pixel Pitch: 17μm
Size: 18x16x2.8mm Weight: <1.5g
NETD: <40mK Spectral Range: 8~14μm
High Light:

FPA Uncooled Infrared Detectors

,

Uncooled Infrared Detectors 400x300

,

400x300 Uncooled Vox Microbolometer

About GST417W Uncooled Infrared Detector



LWIR 400x300 / 17μm VOx Uncooled Infrared Detector, FPA Microbolometer for Thermal Camera Module



Product Description



GST417W is one of the Wafer Level Packing (WLP) VOx uncooled focal plane array detectors developed by Global Sensor Technology (GST). Its resolution is 400x300 with pixel size at 17μm.



Wafer level packaging (WLP) is a kind of smallest size of low cost packaging. It is the process of completing high vacuum packaging directly on the entire MEMS wafer, then scribing and cutting to make a single infrared detector. From its manufacturing, packaging and delivery to the customer, the entire process is greatly reduced and the cycle is much shorter, which will cause lower costs.



GST417W uncooled LWIR Infrared sensor is widely used in almost all popular applications such as thermography, security monitoring, firefighting, autonomous driving, personal vision etc.



Main Features



- Tiny Size: 18x16x2.8mm
- Light Weight: <1.5g
- Low Power Consumption
- Sharp Image Presentation
- A Variety of Applications



Product Specifications



Model GST417W
Material VOx
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8-14μm
NETD <40mK
Digital Output Built-in 14 bits ADC
Typical Responsivity 15mV/K
Thermal Response Time <12ms
Frame Rate 50/60Hz
Dimension (mm) 18x16x2.8
Weight <1.5g
Operation Temperature -40°C ~ +85°C



Industrial Applications



The GST417W uncooled microbolometer detector is widely used in many areas, such as Thermography, Security & Monitoring, Outdoors, UAVs Payload, Epedemic Prevention, ADAS, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.



FPA Uncooled Infrared Detectors 400x300 Uncooled Vox Microbolometer 0



Honors & Certificates



FPA Uncooled Infrared Detectors 400x300 Uncooled Vox Microbolometer 1



FAQs



1. What is the difference between uncooled and cooled IR detectors?



There are currently two types of infrared thermal imaging sensors on the market, cooled and uncooled.



Uncooled IR detector operates at ambient temperature. It is based on semi-conductor industry and thus usually can be fabricated in big volume with small size and low cost. Uncooled IR detectors are widely used in portable/handheld/mobile devices.



Cooled IR detectors are packaged in a unit that keeps them at an extremely low temperature which shall be supported by a cryo cooler. They are much bigger, more expensive and less reliable than uncooled sensors, mainly due to the complex cooling systems they require. However, the cooled systems are incredibly sensitive and usually work with long focal length optics to achieve long range mission.
