Uncooled FPA Thermal Detector Camera 50Hz For Security Monitoring

I'm Online Chat Now

Uncooled FPA Thermal Detector Camera 50Hz For Security Monitoring

Uncooled FPA Thermal Detector Camera 50Hz For Security Monitoring
Uncooled FPA Thermal Detector Camera 50Hz For Security Monitoring

Large Image :  Uncooled FPA Thermal Detector Camera 50Hz For Security Monitoring

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GST412C
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 400x300 / 12μm NETD: <40mK
Spectral Range: 8~14μm Size: 18.5×18.5×3.8 (Without Pin Size)
High Light:

Uncooled FPA Thermal Detector Camera


50Hz Thermal Detector Camera


Security Monitoring Uncooled Infrared Detectors

GST412C Uncooled Infrared Detector

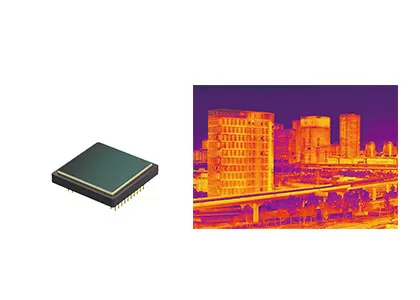

400x300 / 12μm Uncooled FPA Thermal Imaging Detector with Ceramic Package


Product Description


GST412C uncooled infrared detector is a new arrival infrared product developed by Global Sensor Technology. It uses the international mainstream vanadium oxide material which makes it own more outstanding comprehensive performance. This vanadium oxide (VOx) microbolometer detector covers long wavelength from 8 to 14μm. And its resolution is 400x300 with pixel size at 12μm.


Ceramic packaging is currently the most popular packaging technology on the market. The size, weight and power consumption of the detector can be significantly reduced. By integrating the ceramic packaging infrared detector, the infrared camera could present clear and sharp images.


This new ceramic package infrared detector will give more choices for customers from various industries such as Industrial Automation, Intelligent Security, Unmanned Platform, Robot, Intelligent Hardware, Advanced Driver Assistant System, Firefighting etc.


Main Features


- High thermal sensitivity, NETD<40mK

- Frame rate up to 50Hz;
- Mini size as low as 18.5mm×18.5mm×3.8mm
- Light weight, less than 4.5g
- Low power consumption: 80mW


Product Specifications


Model GST412C
Sensitive Material Vanadium Oxide
Resolution 400×300
Pixel Size 12μm
Spectral Range 8-14μm
Typical NETD <40mK
Digital Output Built-in 14 bit ADC
Thermal Response Time <12ms
Max Frame Rate 50Hz
Power Consumption ≤80mW
Dimension (mm) 18.5×18.5×3.8 (Without Pin Size)
Weight <4.5g
Operating Temperature -40°C ~ +85°C


Industrial Applications


The GST412C thermal imaging detector is widely used in many areas, such as ADAS, Security Monitoring, Handheld Device, Helmet-mounted Device, UAV Payloads, Machine Vision, Thermography, Power Maintenance, Metallurgy Petrochemical, Epidemic Prevention, Scientific Research etc.


Hornors & Certificates


Uncooled FPA Thermal Detector Camera 50Hz For Security Monitoring 0




1. What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.


2. What can infrared imaging be used for?

-Night vision

-Search & rescue

-Non-destructive test

-Epidemic prevention


-Security & monitoring



3. What is thermal imaging module?

A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
