RS232 Uncooled Thermal Imaging Binoculars Handheld 640×512

I'm Online Chat Now

RS232 Uncooled Thermal Imaging Binoculars Handheld 640×512

RS232 Uncooled Thermal Imaging Binoculars Handheld 640×512
RS232 Uncooled Thermal Imaging Binoculars Handheld 640×512

Large Image :  RS232 Uncooled Thermal Imaging Binoculars Handheld 640×512

Product Details:
Place of Origin: WUHAN
Brand Name: GST
Model Number: IR522-WM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Payment Terms: L/C, T/T
Detailed Product Description
Type: Uncooled Thermal Binocular Laser Wavelength: 1.535μm, Safe Band For Human Eyes
Infrared Detector: 640×512/12μm LRF Range: Min Range≤50m; Max Range: ≥6km
High Light:

RS232 Uncooled Thermal Imaging Binoculars

,

Handheld Thermal Imaging Binoculars 640×512

,

12um Uncooled Thermal Vision Binoculars

Continuous Optical Zoom Uncooled Thermal Imaging Binoculars

Thermal Imaging Binocular

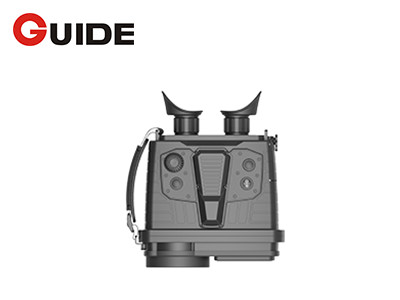

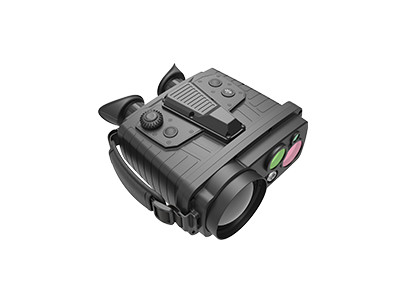

IR522-WM Handheld Uncooled Thermal Binocular with Infrared Camera



Product Description



IR522-WM is a multi-functional handheld uncooled thermal binocular with continuous optical zoom. The IR522-WM thermal imaging binocular could output clear thermal imaging with 640x512 resolution in total darkness or even in harsh environments with poor light condition. It also integrates the visual camera that offers field of view more than 3°x2.2°.



This thermal binocular is able to locate target in daylight and at night and has a high performance laser rangefinder that ensures accurate location of target. It is dedicated to long range target location and surveillance.



Global Sensor Technology is a supplier of cooled uncooled infrared detectors and infrared thermal imaging modules. We have more than 10 years of experience about infrared thermal imaging applications and a set of mature solutions available for customers. At the same time, we also have professional after-sales service team to provide you with professional reply. For any questions or problems, please contact us at any time, we will be in the first time for you to answer.



Main Features



- With high accuracy, repeat frequency, stable laser rangefinder
- With target recognition and mark functions

- Support clear imaging in heavy fog

- Laser wavelength is safe for human eyes

- Measuring error less than 2m

- Support self and target positioning function that has fast operation, strong signal and high accuracy



Specifications



Model IR522-WM
Infrared Camera
Detector Type Uncooled VOx FPA Microbolometer
Resolution 640×512
Pixel Pitch 12μm
FOV ≥6.1°×5.0°
Visual Camera
Field of View ≥3°x2.2°
Fog Penetration Yes. When visibility ≤4km, fog penetration ratio ≥1.5
Laser Rangefinder
LRF Range Min Range≤50m; Max Range: ≥6km
Measuring Error ≤2m
Accuracy Rate ≥98%
Laser Wavelength 1.535μm, Safe band for human eyes
Interface (With external power supply interface)
Data Interface Standard USB Port
Video Interface Standard PAL
Communication Interface Standard RS232
Beidou Positioning Accuracy
Horizontal Positioning ≤10m (CEP)
Elevation Positioning ≤10m (PE)
Positioning Accuracy
Magnetic Azimuth Accuracy ≤0.5° (RMS, Inclination Range -15°~+15°)
Target Positioning Accuracy ≤20m (CEP) When the observation distance is 2km
Power Supply
Continuous Working Time ≥10h (Room Temperature)
Physical Characteristics
Net Weight ≤1.6kg
Gross Weight ≤2.3kg
Environmental Adaptability
Working Temperature -40 °C ~+55°C
Storage Temperature -55 °C ~+70°C



FAQs



1.Thermal imaging binoculars vs. night vision binoculars



Compared with thermal imaging binoculars, night vision binoculars are much cheaper.



Thermal imaging binoculars collect infrared radiation and turn it into a thermogram. They don’t rely on light and nor emit infrared ray actively. They can be effective in day and night which has poor light conditions or total darkness and even in harsh environments such as rain, snow, dust and haze etc.



While night vision relies on visible light. They collect ambient light, moonlight or starlight and amplify it to detect targets in the dark. They cannot be used during the day, because they maybe damaged. And also they cannot see through bushes, smoke, fog or rain.
