Cooled MWIR FPA Thermal Imaging Binoculars With Laser Rangefinder

I'm Online Chat Now

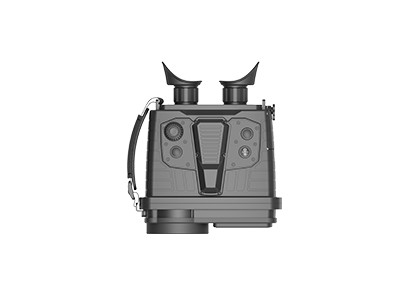

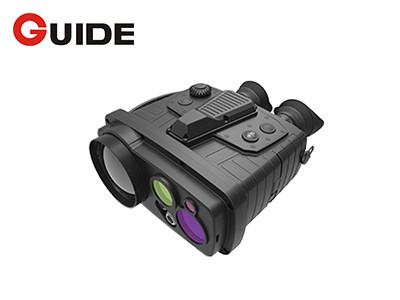

Cooled MWIR FPA Thermal Imaging Binoculars With Laser Rangefinder

Cooled MWIR FPA Thermal Imaging Binoculars With Laser Rangefinder
Cooled MWIR FPA Thermal Imaging Binoculars With Laser Rangefinder

Large Image :  Cooled MWIR FPA Thermal Imaging Binoculars With Laser Rangefinder

Product Details:
Place of Origin: WUHAN
Brand Name: GST
Model Number: IR522-WM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Payment Terms: L/C, T/T
Detailed Product Description
Type: Uncooled Thermal Binocular Infrared Camera Detector: Cooled MWIR FPA 640x512/15μm
Infrared Camera FOV: Max FOV: ≥7.42°×5.35°/Min FOV: ≥2.33°×1.86° Visual Camera: Max FOV:≥7.5°x5.34°/Min FOV:≥1.8°x1.3°
High Light:

MWIR FPA Thermal Imaging Binoculars

,

Laser Rangefinder Cooled Thermal Imaging Binoculars

Brief Introduction


Uncooled Thermal Imaging Binoculars with Laser Rangefinder


Product Description


IR522-WM is a multi-functional handheld uncooled thermal binocular with continuous optical zoom designed for dynamic environments, such as ranging from moving platforms and/or ranging moving targets. The thermal imaging binocular integrates both infrared camera and visual camera for precise, real-time measurement for greater reliability.

Its infrared camera offers clear temperature data with uncooled 640x512 MWIR focal plane array infrared detector and field of view ranging from 2.33°×1.86° to 7.42°×5.35°.

This thermal imaging binocular is able to locate target in daylight and at night and has a high performance laser rangefinder that ensures accurate location of target, even in poor weather conditions.


Main Features


- With high accuracy, repeat frequency, stable laser rangefinder
- Support self and target positioning function that has fast operation, strong signal and high accuracy
- With target recognition and mark functions


Specifications



Model IR522-WM
Infrared Camera
Detector Type Uncooled VOx FPA Microbolometer
Resolution 640×512
Pixel Pitch 12μm
FOV ≥6.1°×5.0°
Visual Camera
Field of View ≥3°x2.2°
Fog Penetration Yes. When visibility ≤4km, fog penetration ratio ≥1.5
Laser Rangefinder
LRF Range Min Range≤50m; Max Range: ≥6km
Measuring Error ≤2m
Accuracy Rate ≥98%
Laser Wavelength 1.535μm, Safe band for human eyes
Interface (With external power supply interface)
Data Interface Standard USB Port
Video Interface Standard PAL
Communication Interface Standard RS232
Beidou Positioning Accuracy
Horizontal Positioning ≤10m (CEP)
Elevation Positioning ≤10m (PE)
Positioning Accuracy
Magnetic Azimuth Accuracy ≤0.5° (RMS, Inclination Range -15°~+15°)
Target Positioning Accuracy ≤20m (CEP) When the observation distance is 2km
Power Supply
Continuous Working Time ≥10h (Room Temperature)
Physical Characteristics
Net Weight ≤1.6kg
Gross Weight ≤2.3kg
Environmental Adaptability
Working Temperature -40 °C ~+55°C
Storage Temperature -55 °C ~+70°C



FAQs



1.What is the difference between low light, active IR and thermal imaging?



Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier;

Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment;

Thermal imaging doesn’t need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.



2. Can you block thermal imaging?

In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don’t want to be detected, you can conceal behind glass or walls to block the thermal imaging.



About Global Sensor Technology


Global Sensor Technology is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.

Global Sensor Technology is located at Optics Valley, China. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room settled for its three 8 inch fabrication lines. Thanks to the innovative and experienced staff, advanced fabrication facilities, and cutting-edge technique level, all key fabrication processes such as element purification, epitaxy growth, chip tape-out and fabrication, vacuum packaging can be done in house. The company successfully launched state-of-the-art VOx uncooled detectors, MCT and T2SL cooled detectors with full intellectual property. The product portfolio covers many different array formats, various pixel size and multiple spectral band combination, all products with high thermal sensitivity and reliability.

GST IR detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of GST enables it to meet the growing demand from all existing and emerging markets.
