Detailed Product Description
Resolution: 384x288 /17μm NETD: ≤50mK
Spectral Range: 8~14μm Size: 21x22.3x15.6mm (With 9.1mm Lens)
Temperature Range: -20℃~+550℃ (Customizable) Temperature Accuracy: ±3℃ Or ±3%
High Light:

IP67 Uncooled Thermal Camera Module

,

Intelligent Image Algorithm Thermal Camera Module

,

VOx Thermal Security Camera

Uncooled Thermal Camera Module with Various Intelligent Image Algorithm

Thermal Imaging Module


LWIR Uncooled Thermal Camera Module for Thermal Security Camera


Product Description

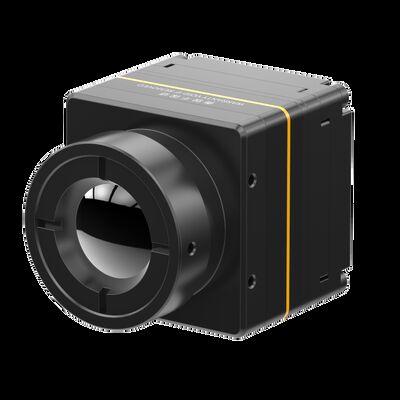

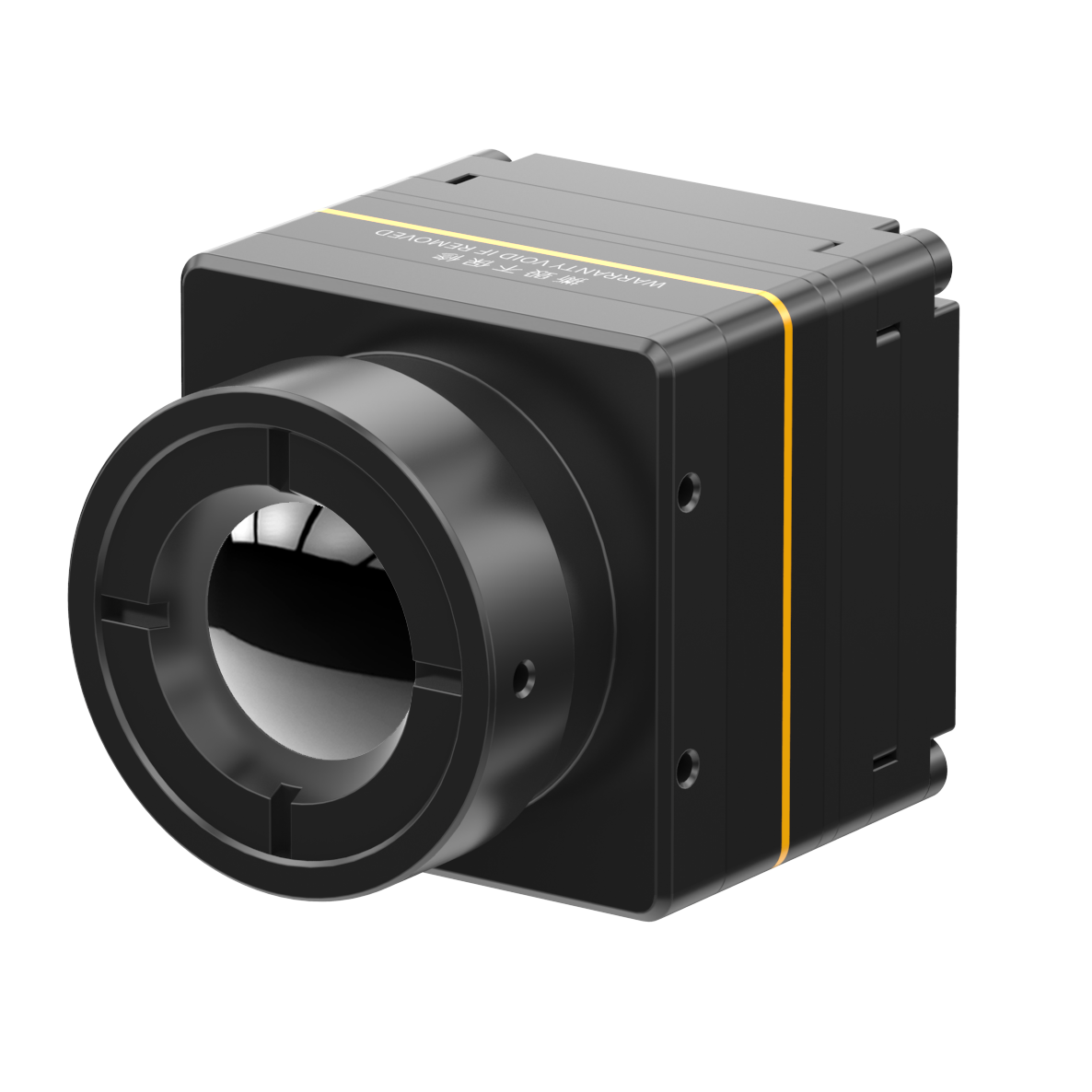

COIN417G2 uncooled infrared module is a new generation version of COIN417 developed by Global Sensor Technology (GST). It integrates 400x300@17μm wafer level package (WLP) infrared imaging detector, high performance signal processing circuit and image processing algorithm. There are three types of lenses for COIN417G2 Thermal Module: fixed athermal 9.1㎜/13㎜/19㎜ lenses for different observation distance.


By using the WLP infrared detector and orienting for fully optimized SWaP, the typical power consumption of COIN417G2 has reduced by 50%, from 1.4W to 0.7W, while its performance is not compromised. Its super-fast start up time greatly reduces from 10s to 3.5s without waiting for long time. It guarantees IP67 protection level and pass the ESD test: contact discharge±4KV, air discharge±8KV.



The COIN417G2 infrared module features in sharp and crisp thermal image presentation, compact size and low cost. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement (support customization and expansion)


COIN417G2 thermal module could meet the requirements of remote temperature measurement. It can be integrated into all kinds of thermal cameras.



Main Features


- Mini Size: 25.4x25.4x29.3mm (with 9.1mm Lens)
- Light Weight: 29g±3g (with 9.1mm Lens)
- Typical NETD≤40mk
- Enhanced Image Quality
- Low Power Consumption
- Rapid Development & Integration


Product Specifications



Model COIN417G2/R
IR Detector Performance
Material VOx
Resolution 400×300
Pixel Pitch 17μm
Spectral Range 8μm ~14μm
Typical NETD ≤40mK
Image Processing
Frame Rate 50Hz/30Hz/25Hz
Start-up Time 3s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656
Image Algorithm Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
2D Noise Reduction (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Digital Zoom 1X~8X Continuous Zoom, 1/8 Step Size (YUV Output)
Image Display Black Hot/White Hot/Pseudo Color
PC Software
ICC Software Module Control and Video Display
Electrical Specification
Standard External Interface 50Pin_HRS: DF40C-50DP-0.4V(51), (HRS, Male)
USB Extension Board Type-C
Communication Interface TTL-232/USB2.0
Digital Video Interface CMOS8/CMOS16/LVDS/USB2.0
Supply Voltage 4~5.5V
Typical Power Consumption 0.7W
Temperature Measurement
Operating Temperature Range -10℃~+50℃
Temperature Measurement Range -20℃~150℃, 0℃~550℃; Support Customization and Expansion
Temperature Measurement Accuracy Greater of ±3℃ or ±3%
Regional Temperature Measurement Support Maximum, Minimum and Average Value of the Output Regional Temperature
SDK Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Size (mm) 25.4×25.4×29.3(With 9.1mm Lens)
25.4×25.4×41.2(With 13mm Lens)
25.4×25.4×40(With 19mm Lens)
Weight 29g±3g(With 9.1mm Lens)
42g±3g(With 13mm Lens)
44g±3g(With 19mm Lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, 3-axis
Shock Half Sine Wave, 40g/11ms, 3-axis, 6-direction
Certificates ROHS2.0/REACH
Optics
Optional Lens Fixed Athermal: 9.1mm/13mm/19mm
Protection Level IP67



Industrial Applications


The COIN417G2 thermal module be used in Thermography, Security Monitoring, Firefighting & Rescue, Outdoors, AIoT, Smart Hardware, UAVs Payload, ADAS etc.

Uncooled Thermal Camera Module with Various Intelligent Image Algorithm 0


Clear Thermal Imaging


Uncooled Thermal Camera Module with Various Intelligent Image Algorithm 1


FAQs



1. Why is thermal imaging technology popular in night vision?

In night vision industry, thermal imaging has outstanding advantages in long distance, concealment and resistance to harsh imaging environment.



2. What are the advantages of infrared thermal imaging in vehicle vision system?

Infrared thermal imaging vehicle vision system is a kind of ADAS system (advanced driving assistance system), which converts the infrared radiation of the target into the infrared image visible to the naked eye. The infrared radiation of the object happens all the time and is not affected by external weather factors. Therefore, the on-board vision system supported by thermal imaging technology is not affected by the weather such as night, rain, snow, haze, sand and dust, and can present clear road images in front of the vehicle all day long, and can also eliminate glare interference when driving head-on.
