Uncooled Thermal Security Camera Core MegaPixel Plug Series

I'm Online Chat Now

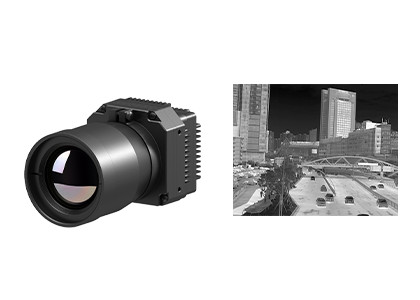

Uncooled Thermal Security Camera Core MegaPixel Plug Series

Uncooled Thermal Security Camera Core MegaPixel Plug Series
Uncooled Thermal Security Camera Core MegaPixel Plug Series

Large Image :  Uncooled Thermal Security Camera Core MegaPixel Plug Series

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG1212
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 1280x1024/12μm NETD: <50mK
Spectral Range: 8~14μm Size: 20x20x10.4mm
High Light:

Uncooled Thermal Security Camera Core

,

MegaPixel Plug Thermal Security Camera Core

PLUG1212 Infrared Camera Module



MegaPixel Plug Series 1280x1024 / 12μm Uncooled Infrared Camera Core Used in Complex Environments



Product Description



PLUG1212 is a large format of uncooled thermal imaging camera module with LWIR 1280x1024 resolution and 12µm infrared detector, specially designed to meet high performance applications of security and monitoring thermal imaging.



With the cutting edge Vanadium-Oxide technology, PLUG1212 infrared camera core could remain superior environmental adaptability in complex and harsh weather conditions. Also it presents ultra clear image and has characteristics of a low-noise high sensitivity, stable performance.



The high definition PLUG1212 thermal core can be integrated into security camera with temperature monitoring from short distance to ultra distance. It is suitable for customers who produce security and monitoring camera with pursuit of high requirements for image and temperature measurement, strong and reliable performance.



Main Features



- Size: 56x56x40.2mm

- Weight: ≤220g

- Wavelength: 8~14µm (LWIR)

- Frame Rate: 25Hz



Product Specifications



Model PLUG1212
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz
Start-up Time <25s
Analog Video /
Digital Video HDMI/RAW/YUV/BT1120
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 5±0.5V
Typical Power Consumption <2.0W
Physical Characteristics
Dimension (mm) 56x56x40.2
Weight ≤220g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 19mm/25mm



Industrial Applications



The PLU1212 infrared imaging module can be integrated into security cameras with temperature monitoring from short distance to ultra distance, such as PTZ Camera, Box Camera, Speed Dome Camera.



Uncooled Thermal Security Camera Core MegaPixel Plug Series 0

Our Advantages



Uncooled Thermal Security Camera Core MegaPixel Plug Series 1



FAQs



1. How does uncooled focal plane array microbolometer work?

By using the principle of infrared radiant thermal effect, the uncooled infrared detector converts infrared radiation energy into heat energy with infrared absorption material, so that the temperature of the sensitive material increases. Then, a certain physical parameter of the sensitive material changes accordingly and converts into electrical signal or visible light signal through a certain conversion mechanism designed to realize the detection of the object.



2. What's the advantage of uncooled vox microbolometer?

Uncooled infrared focal plane detector does not need an Integrated Dewar Cooler Assembly (IDCA) device and can work at room temperature. It has the advantages of fast start, low power consumption, small size, light weight, long life, low cost and so on. Although the sensitivity of uncooled infrared focal plane detector is not as good as that of cooled infrared detectors, after years of development, its cost performance has been obviously better than the cooled detector, which has a broader application prospect.
